280kg (617lbs)

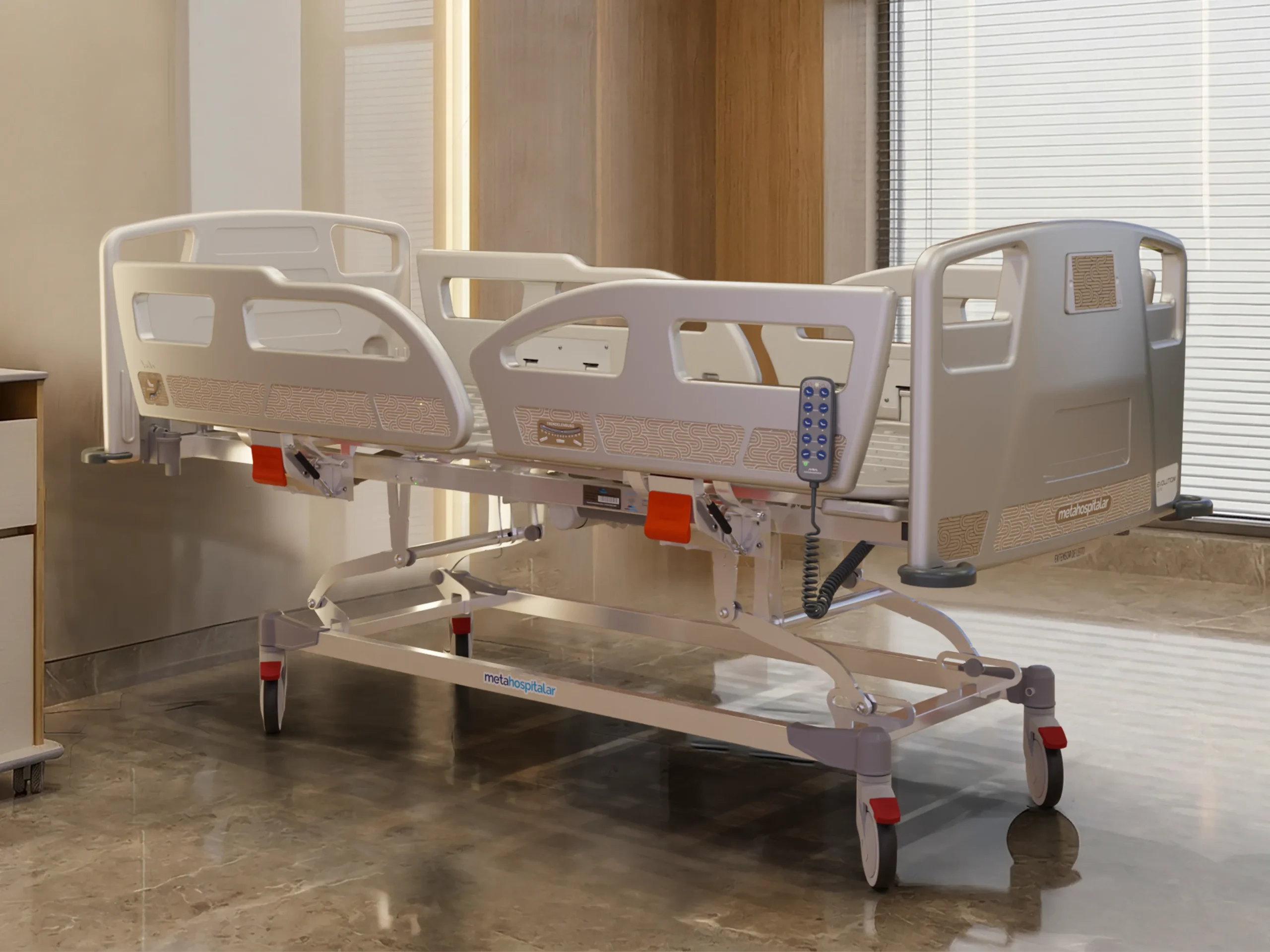

MT 160 – Evolution Care
*Illustrative image only. *Subject to variations. Optional accessories available.
Structure
Frame: High-strength tubular carbon steel construction
Chassis: 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 6.35 mm thick plates (1/4″).
Metal Structure Surface Finish: anti-rust chemical treatment and electrostatic powder coating finish. 1,500-hour salt spray test performed by an INMETRO-accredited laboratory.
Bed
Bed Platform: composed of a 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 9.5 mm thick plates (3/8″). The metal structure of the bed platform consists of four articulated sections made with a 30 x 20 x 1.2 mm tubular structure (≈1″ x 1″ x 0.05″) with 4.8 mm thick plates (3/16″).
Bed Platform: articulated thermoplastic platform in 4 sections.
Siderails
Full-length retractable siderails, equipped with a safety locking system and integrated angle indicators (backrest and Trendelenburg).
Headboard and footboard
Removable, high-strength polyethylene construction
Movement and Elevation

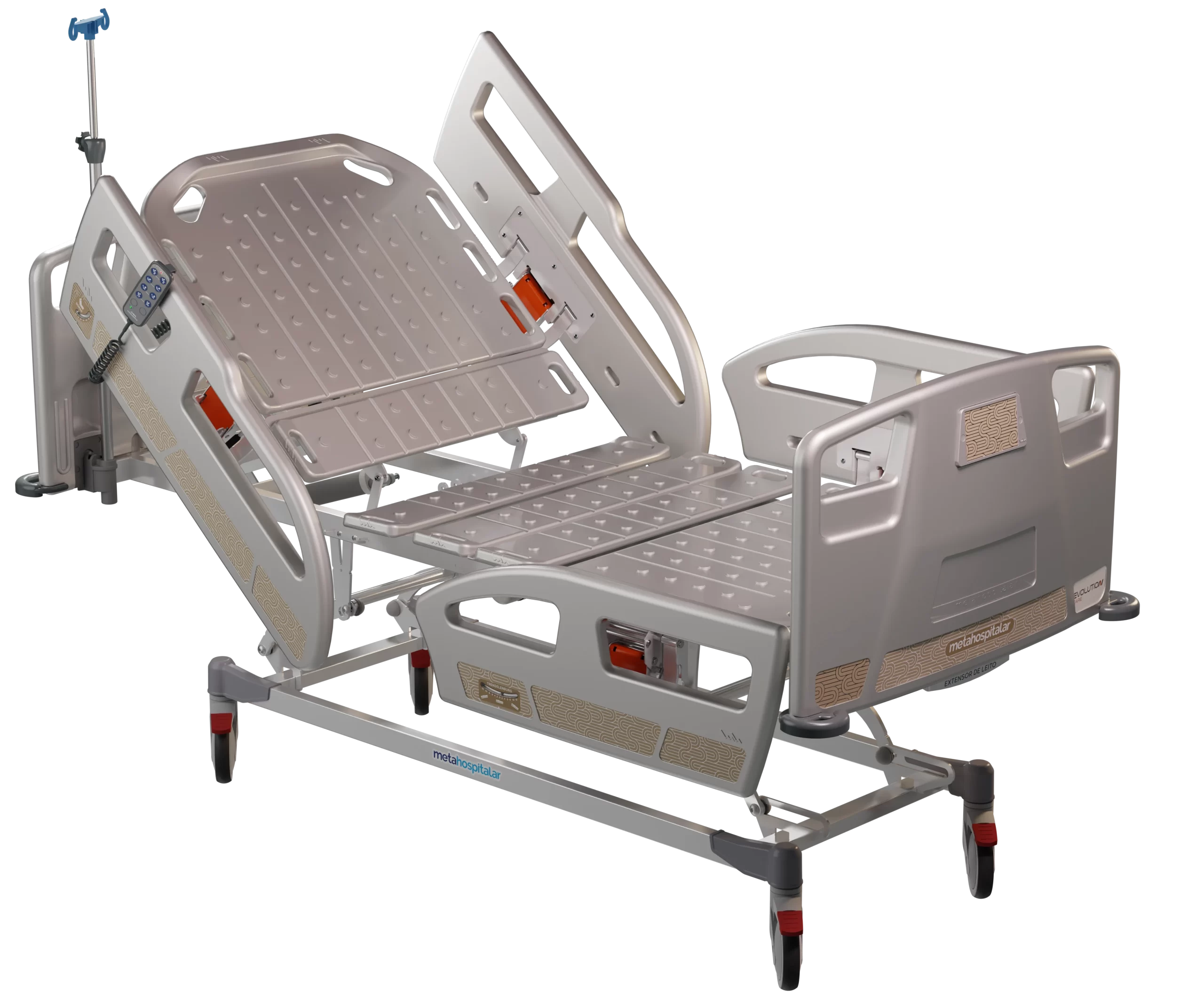

Backrest Fowler: 77º
Leg Fowler: 23º
Trendelenburg: 15º
Reverse Trendelenburg: -15º
Maximum Height: 68 cm (≈27″)

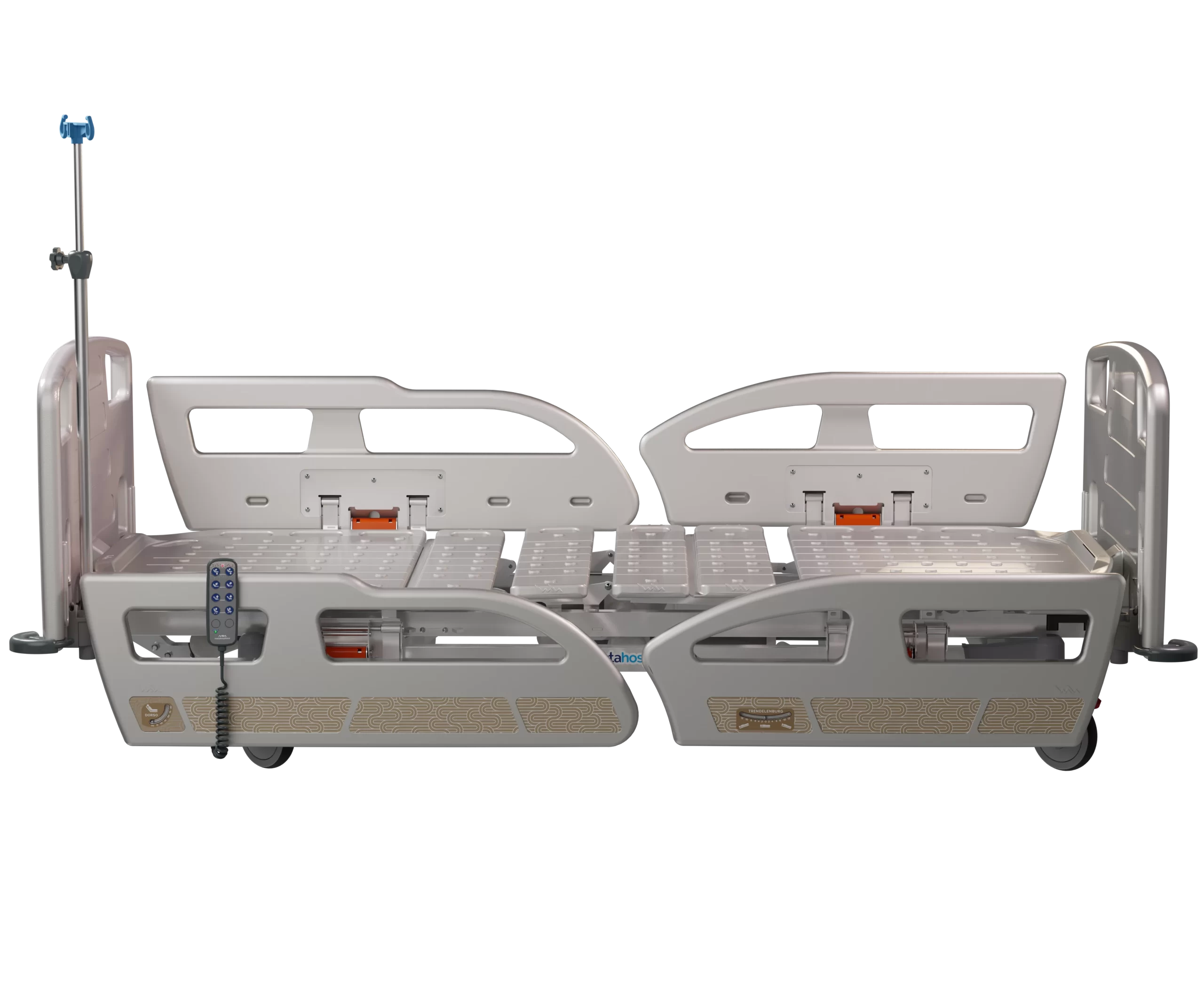

Minimum Height: 33 cm (≈13″)
Lift System: Four-motor electric drive system providing smooth, quiet, and safe operation.

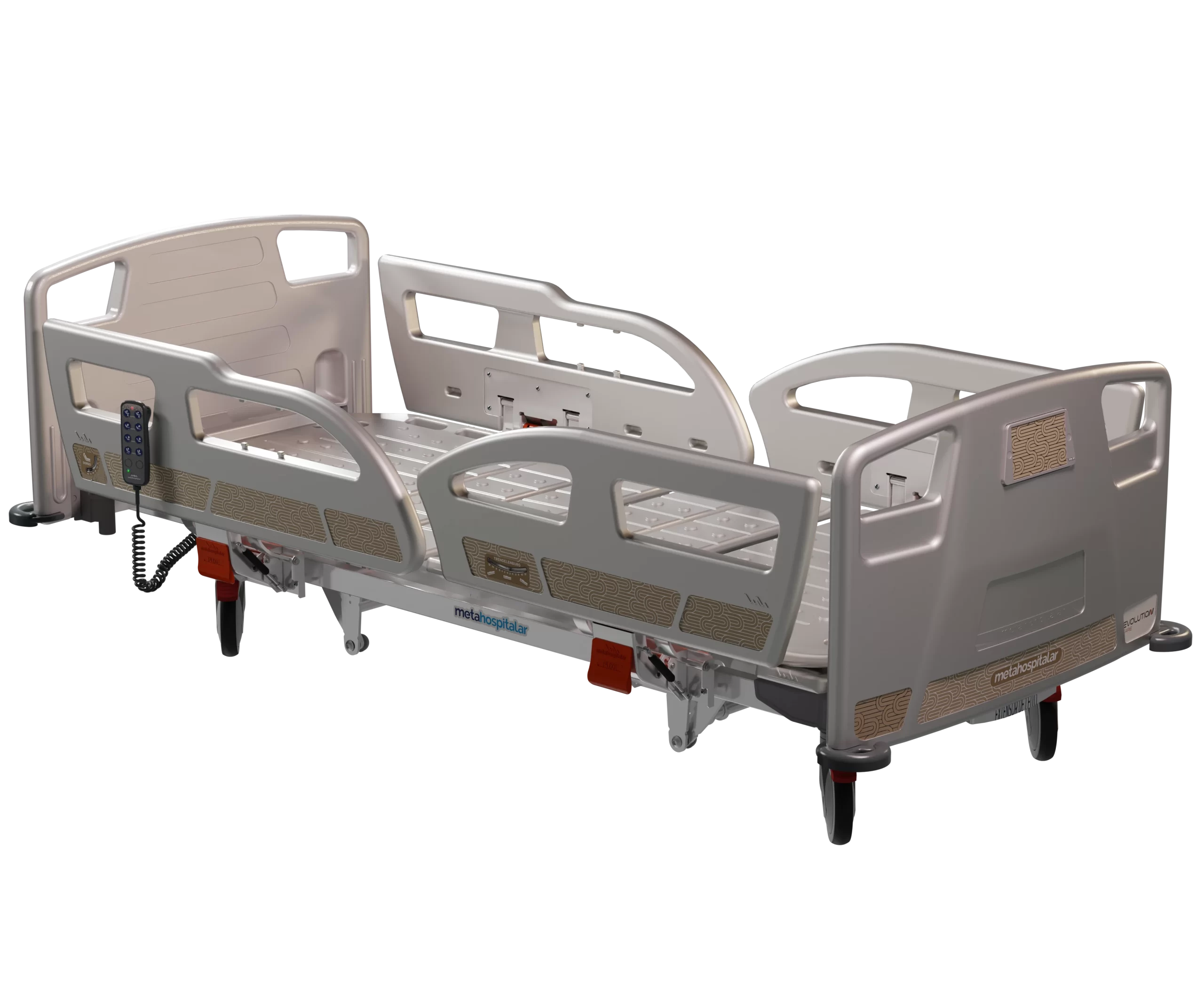

Control: Wired hand controller with function lockout.

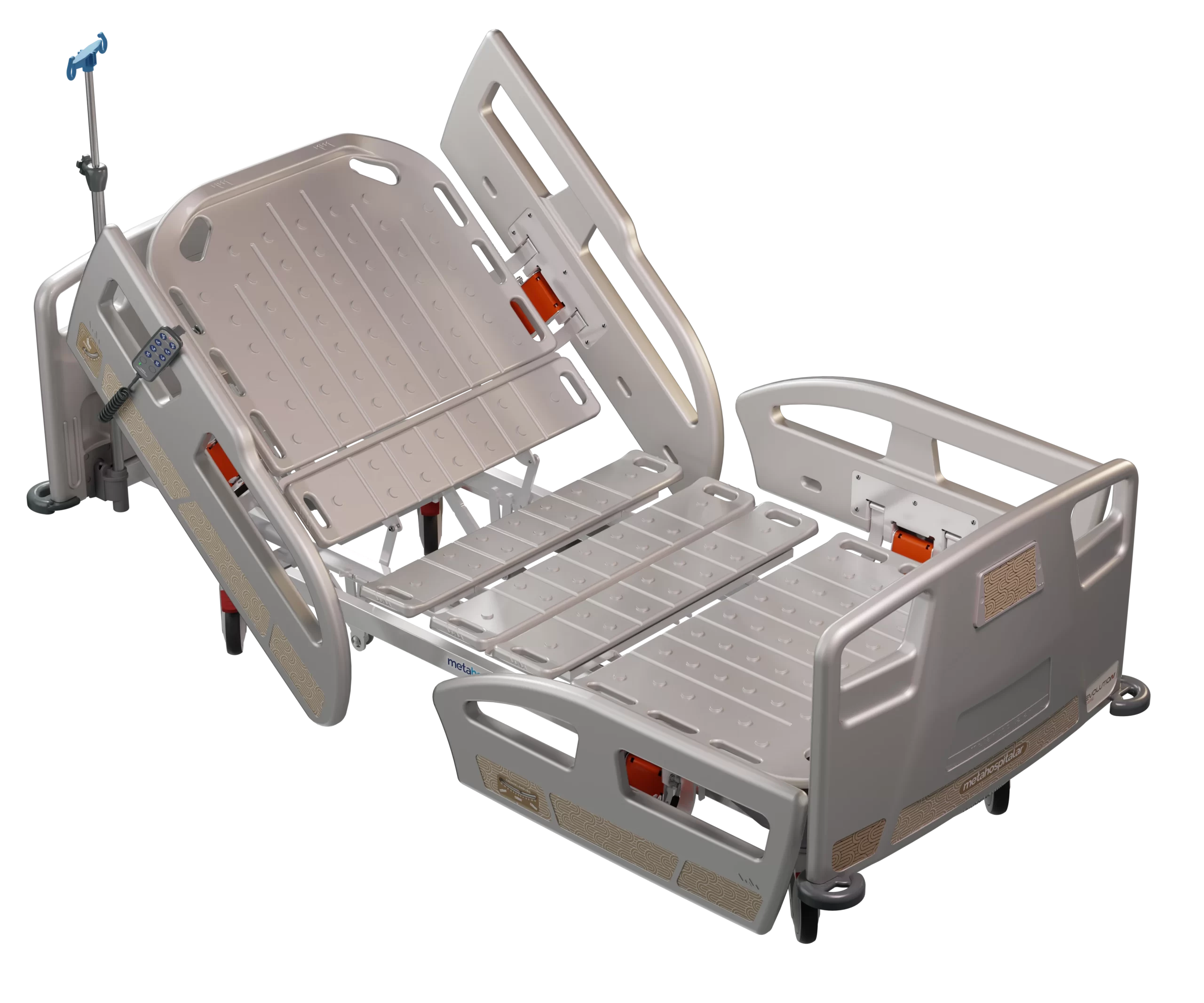

Electric Functions: Fowler, Semi-Fowler, Trendelenburg, Reverse Trendelenburg, Cardiac Chair Position, Vascular Position, Cardiac Position, Auto-Contour, and Abdominal Compensation System.
Dimensions
Bed Platform: 195 x 83 cm (≈77″ x 33″)
Standard Accessories
- Foley Bag Holder
- Bed Platform Extension: 20 cm (≈8″)
- Mattress Retainer Supports
- Base: Thermoplastic protective cover
- Bumper
- Casters: 5″ casters with individual locking brakes.
Colchão Incluso
Mattress Registration: 80581990013
Model: MT-666
D-28 foam + D-40 viscoelastic foam, waterproof seamless cover, compatible with the bed dimensions
Load Capacity
Accessories
- Bed Platform Extension Mattress
- Contact a Specialist
