20 kg

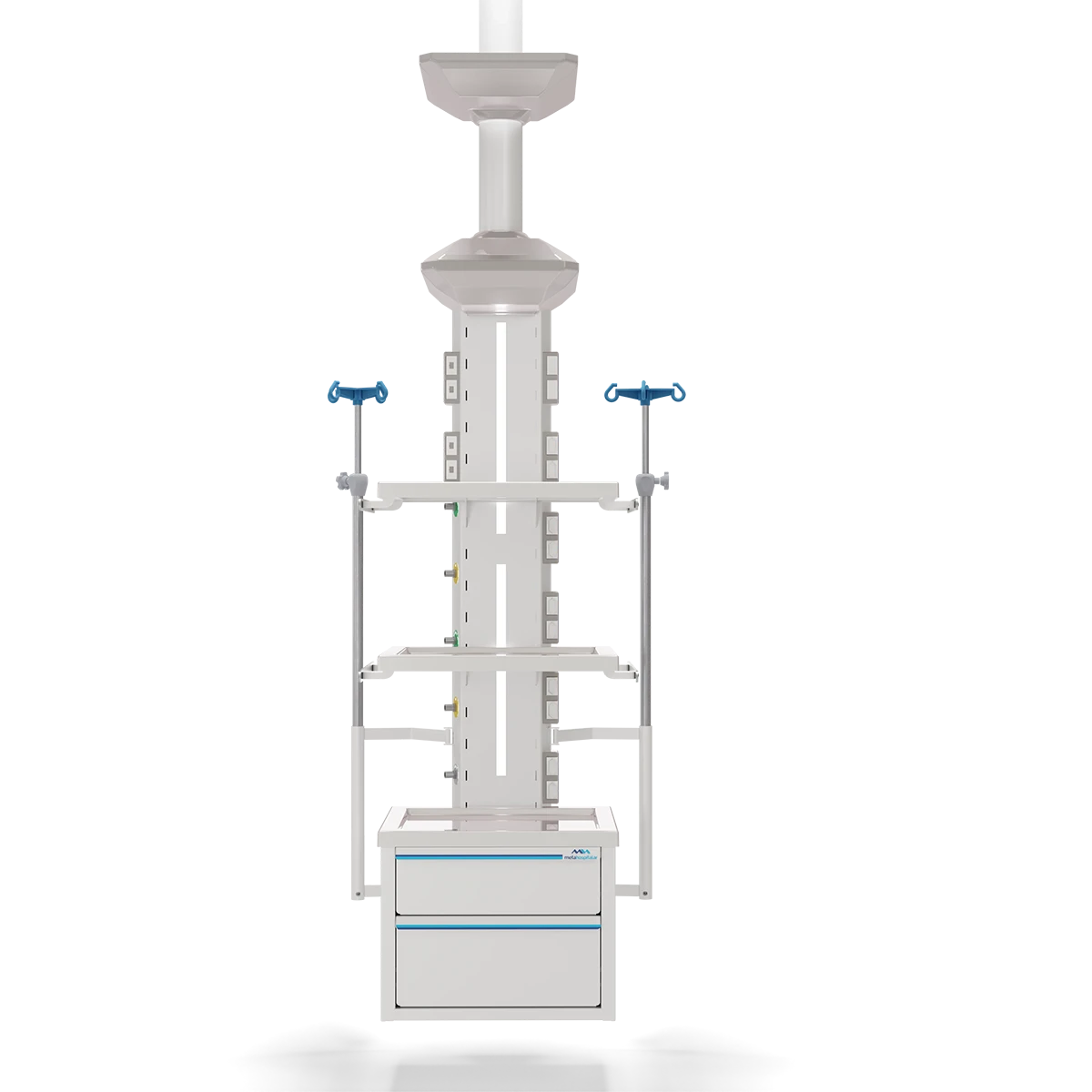

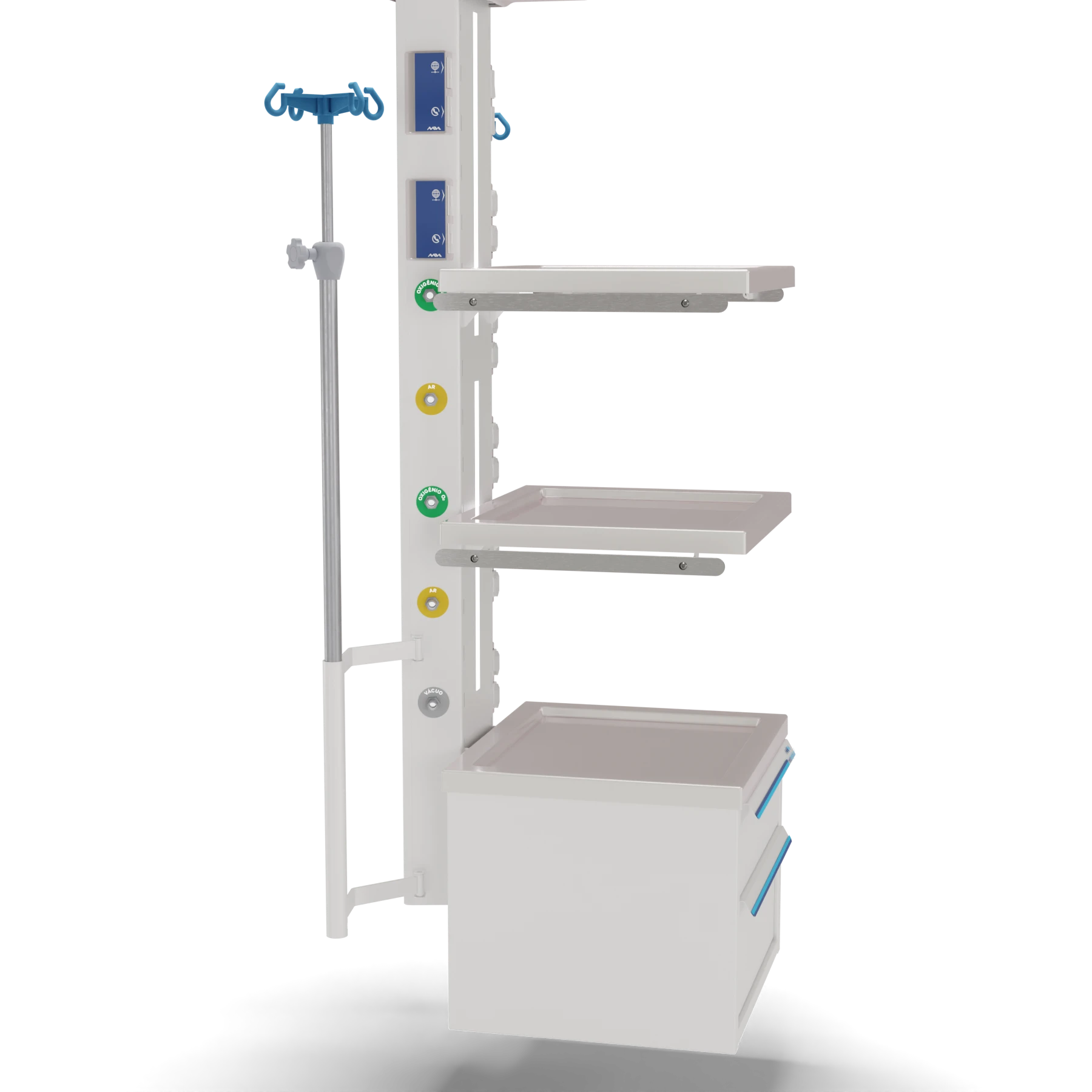

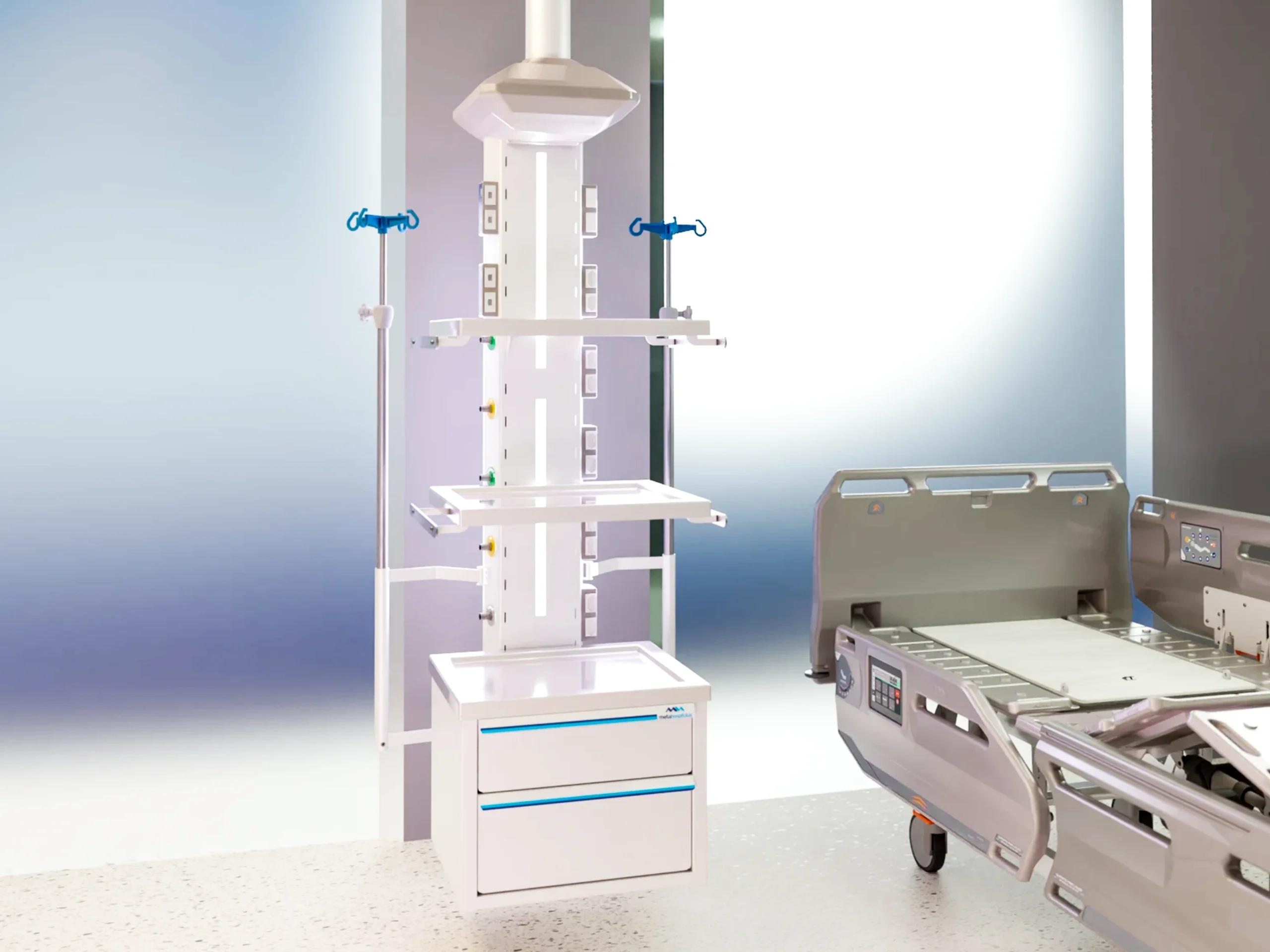

MT 984 – Ceiling Service Unit
MT 984 – Ceiling Service Unit
ANVISA Registration: 80581990010
Produto Certificado:
*Illustrative image only. *Subject to variations. Optional accessories available.
Structure
High-strength carbon steel structure, constructed from 30 × 30 × 1.2 mm (1.2″ × 1.2″ × 0.05″) square steel tubing, carbon steel sheets, and extruded aluminum profiles.

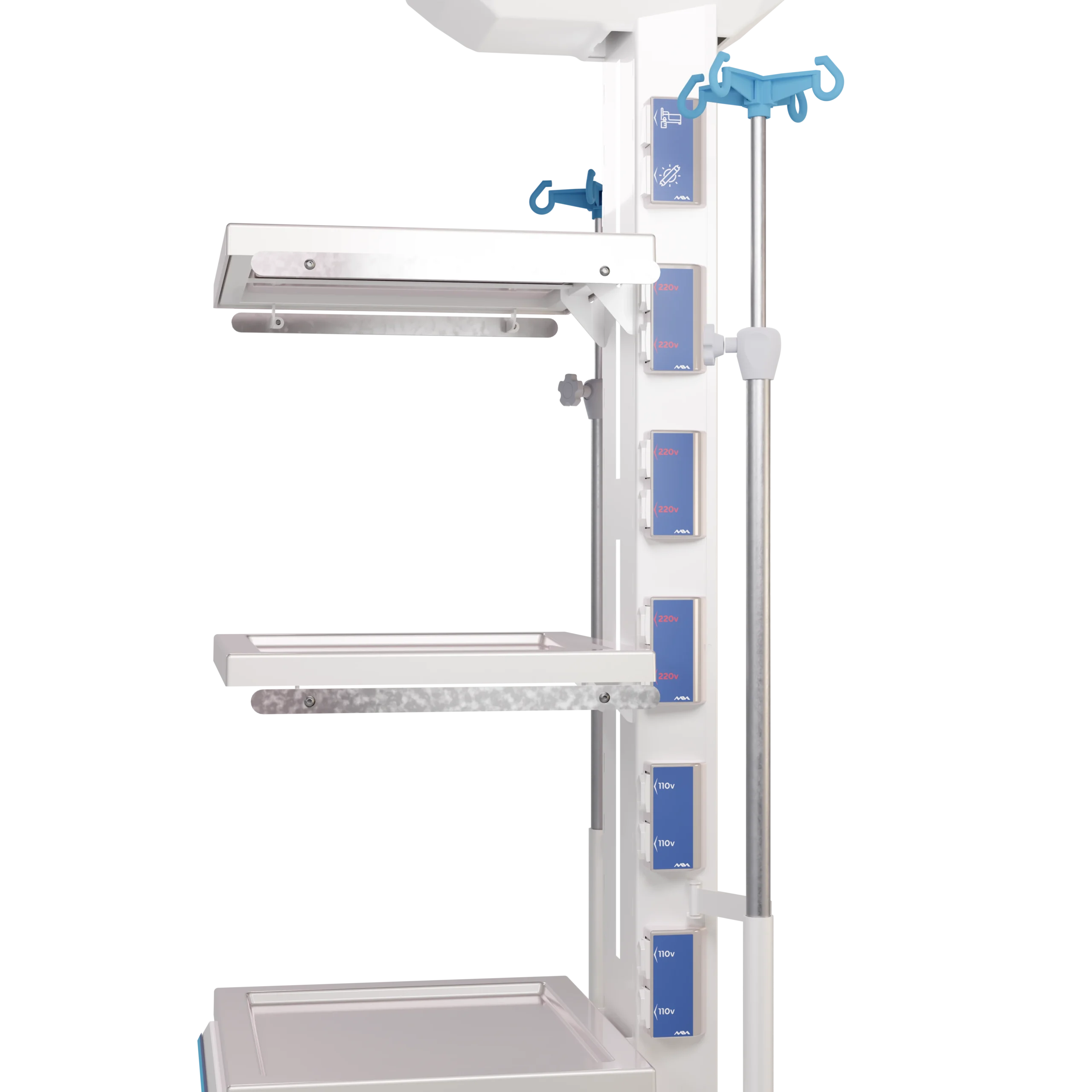

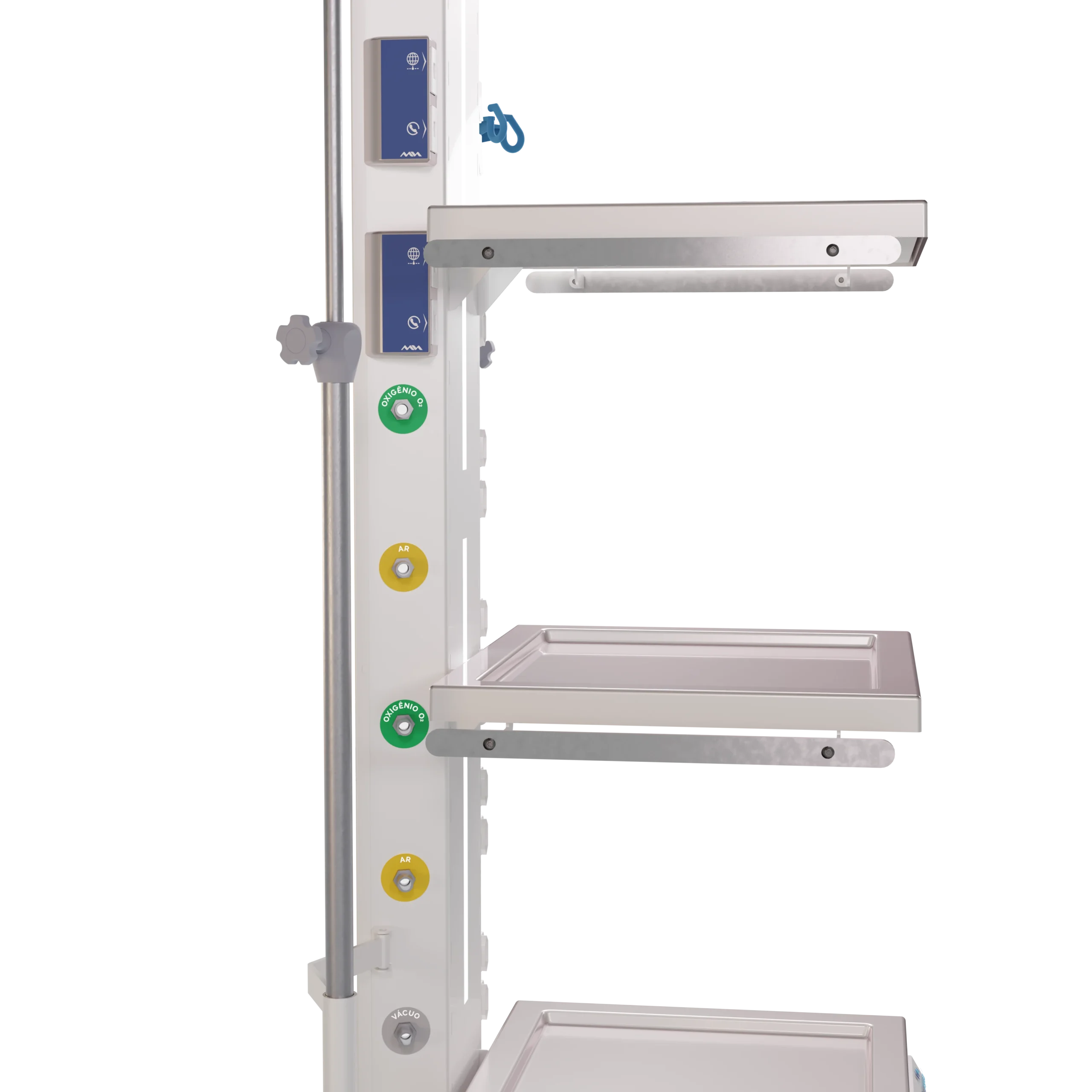

Vertical double column: Constructed with carbon steel tubes, carbon steel sheets, featuring a 120° rotation system (60° to the right and 60° to the left). 5 electrical outlets and gas outlets.
Finishes: Upper and lower covers made of thermoplastic.
Metal Structure Surface Treatment:Anti-corrosion chemical treatment followed by electrostatic powder coating. Tested for 1,500 hours in a salt spray test conducted by an INMETRO-accredited laboratory.

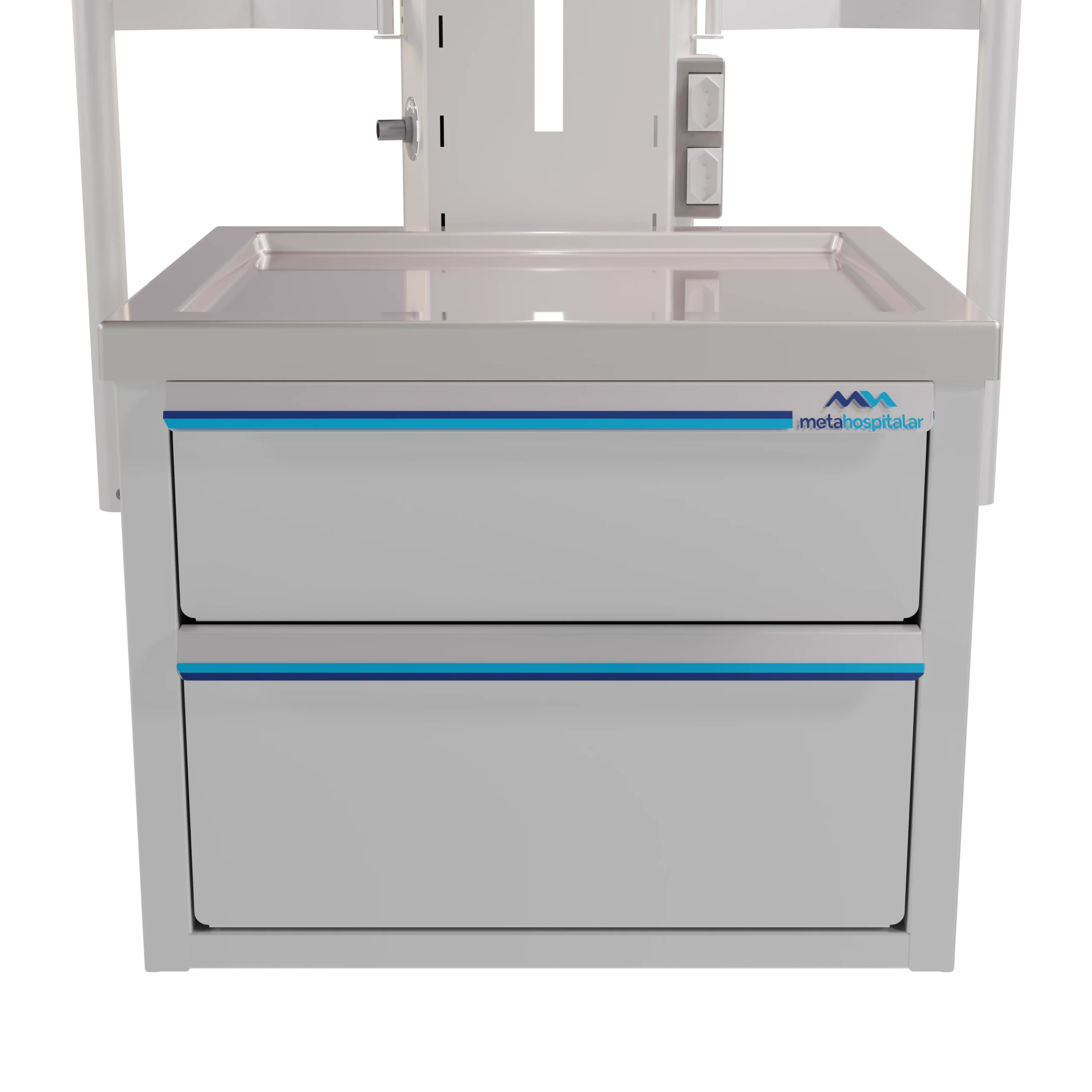

Drawers
Drawers with plastic interior lining. Carbon steel sheet construction with telescopic drawer slides.
Rotation
120° (60° on each side)
Dimensions
63 × 61 cm (25″ × 24″)
Load Capacity
Standard Accessories
• Rotating column.
• Thermoplastic tray.
• 5 electrical outlets.
• Integrated gas circuit with quick disconnects.
• 2 IV poles with height adjustment.
