Capacity: 280 kg (≈617 lb)

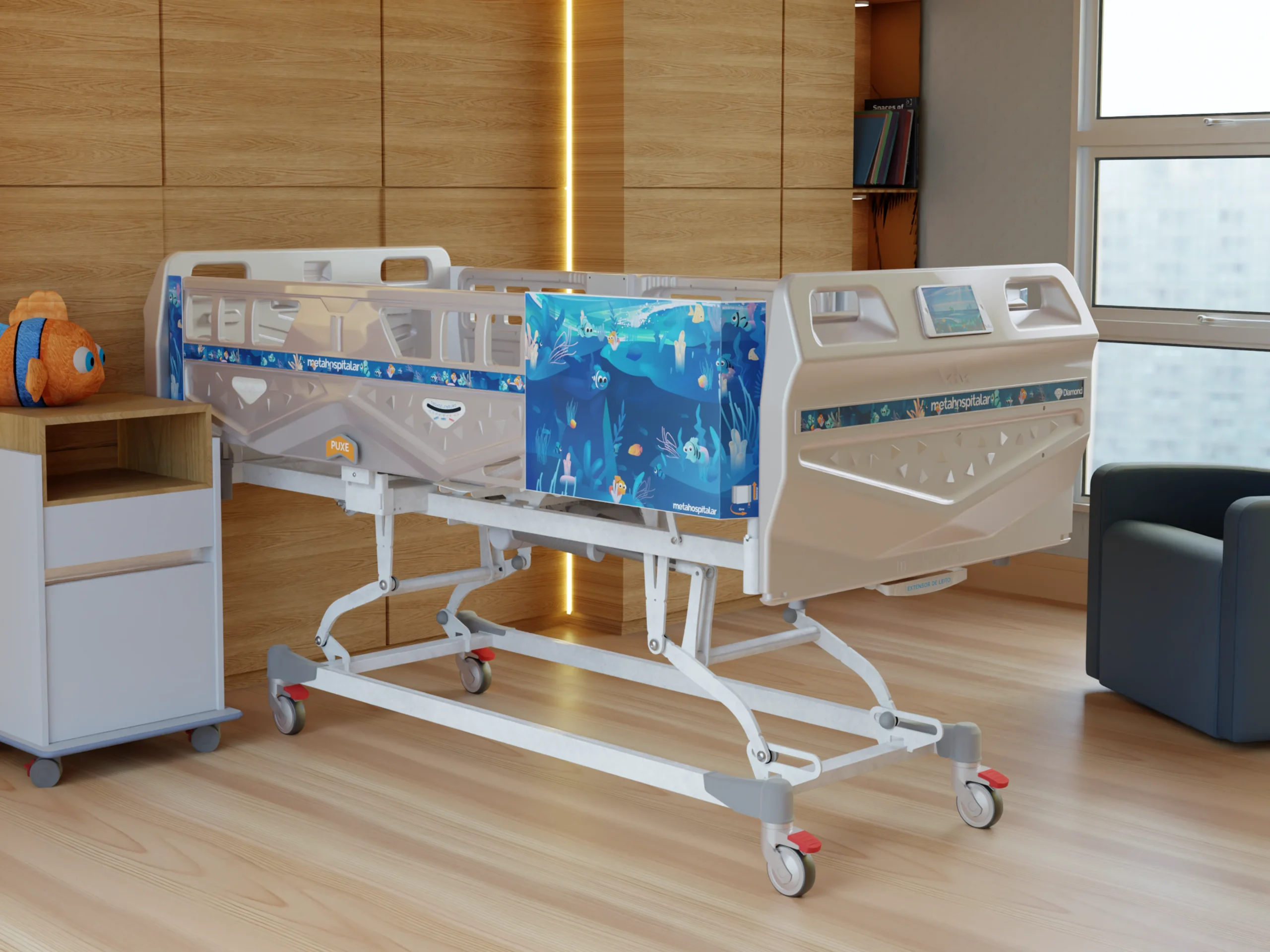

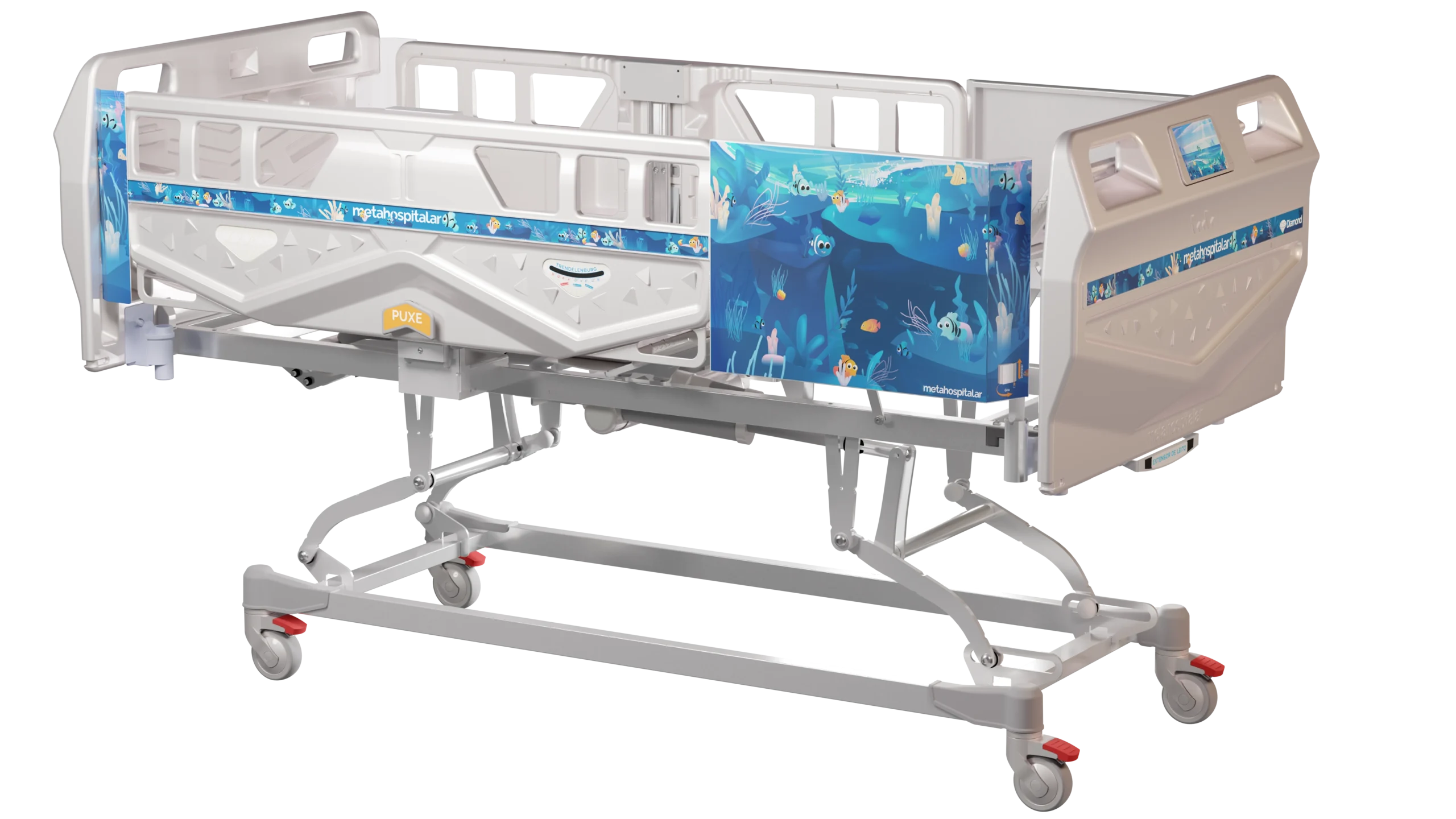

MT 154 – Flex Care Infantil
Image for illustrative purposes only. Features may vary. Optional accessories available.
Structure
Structure: Tubular frame with carbon steel plates.
Chassis: 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 6.35 mm thick plates (1/4″).
Metal Structure Surface Finish: anti-rust chemical treatment and electrostatic powder coating finish. 1,500-hour salt spray test performed by an INMETRO-accredited laboratory.
Bed
Bed Platform: composed of a 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 9.5 mm thick plates (3/8″). The metal structure of the bed platform consists of four articulated sections made with a 30 x 20 x 1.2 mm tubular structure (≈1″ x 1″ x 0.05″) with 4.8 mm thick plates (3/16″).

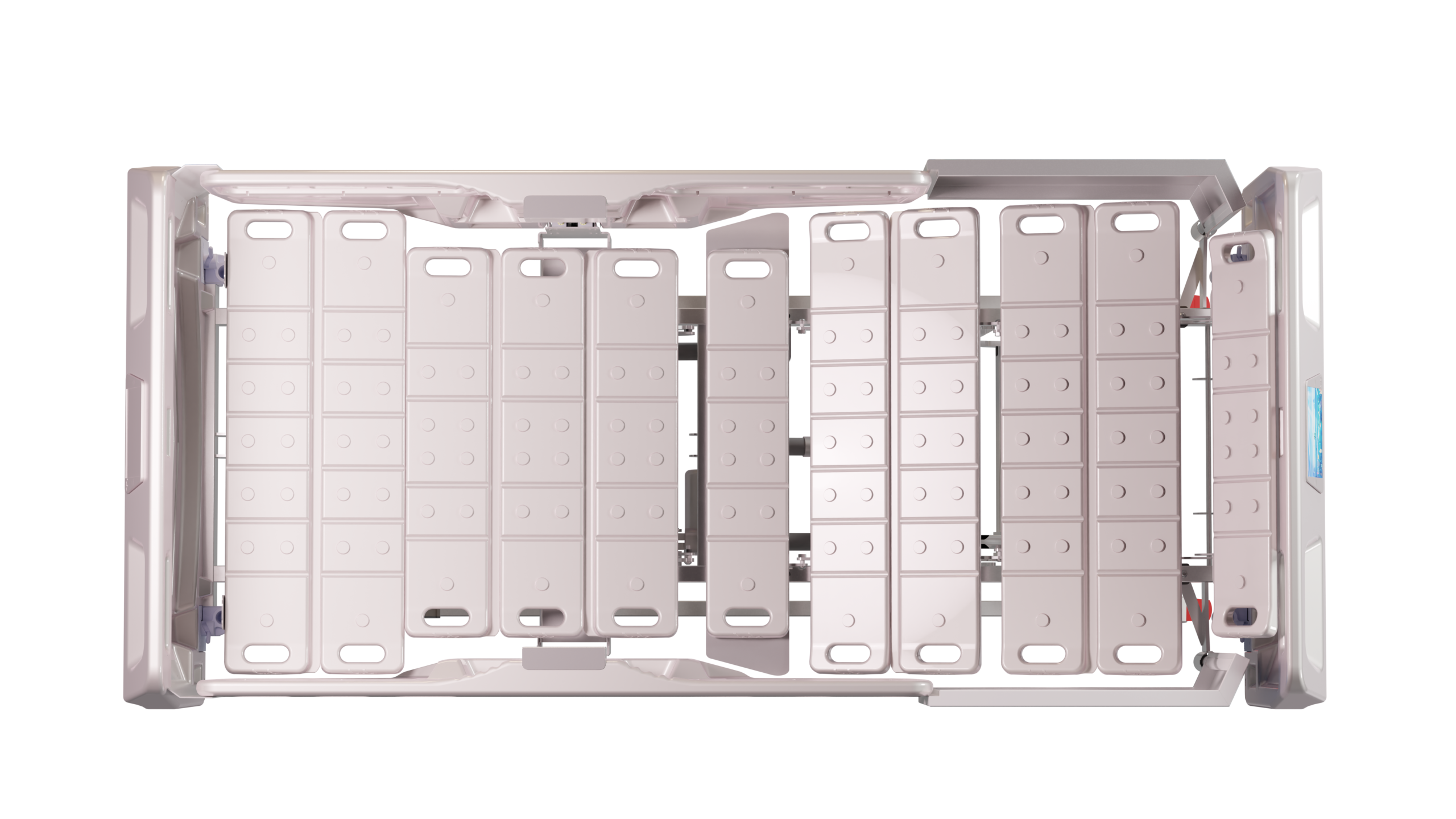

Bed Platform: articulated thermoplastic platform in 4 sections.
Siderails

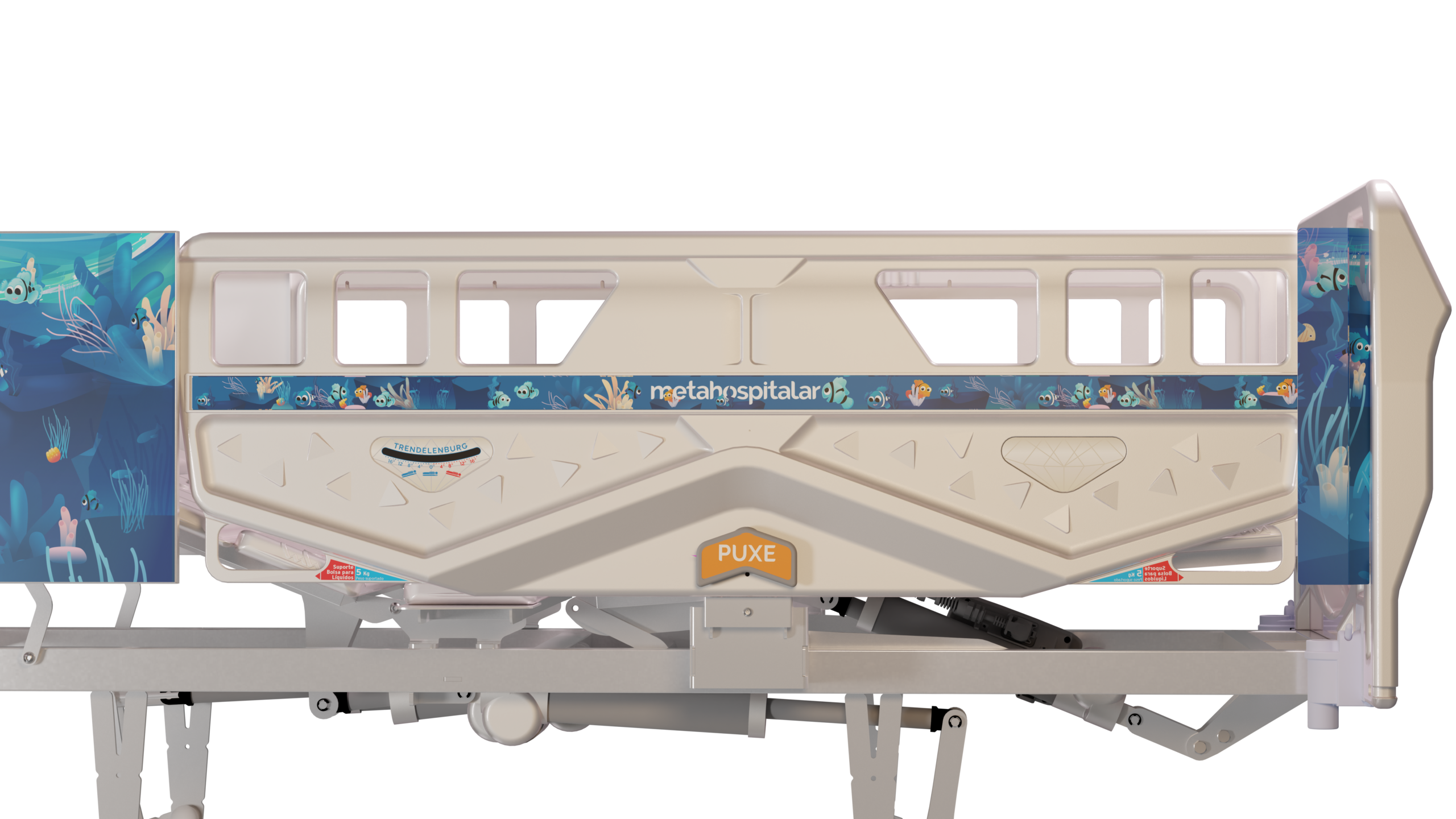

Enclosed-model retractable lateral siderails with safety lock.
Movement and Elevation
Backrest Fowler: 77º
Leg Fowler: 23º
Trendelenburg: 15º
Reverse Trendelenburg: -15º
Maximum Height: 68 cm (≈27″)
Minimum Height: 33 cm (≈13″)
Height adjustment system with 4 motors, providing smooth, silent, and safe movement.
Activation: through wired hand control with function lockout.
Electric Movements: Fowler, Semi-Fowler, Trendelenburg, Reverse Trendelenburg, Chair Position, Vascular Position, Cardiac Position, Abdominal Compensation System, and Auto-Contour.
Dimensions
Dimensions:
Bed platform: 175 x 83cm (69 x 33 in)
Standard Accessories
- Foley Bag Holder

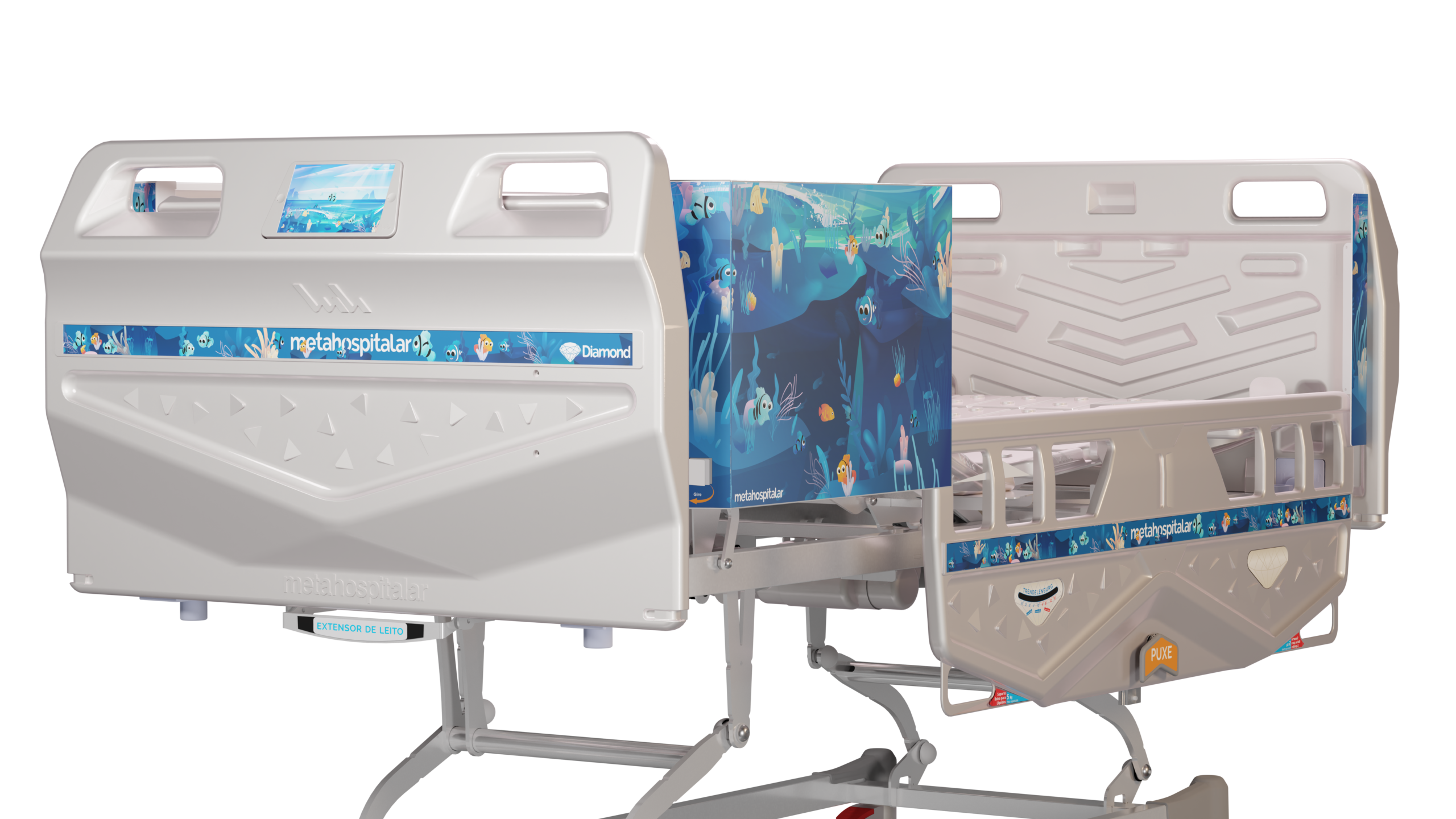

- Bed Platform Extension: 20 cm (≈8″)
- Mattress Retainer Supports
- Bumper
- 4” caster with individual brakes
Colchão Incluso
Mattress Registration: 80581990013
Model: MT-666
D-40 viscoelastic foam, waterproof seamless cover, compatible with the bed dimensions.
Load Capacity
Accessories
- 01 IV Pole with Height Adjustment
- Fifth Wheel
- 5″ thermoplastic caster
- Oxygen Cylinder
