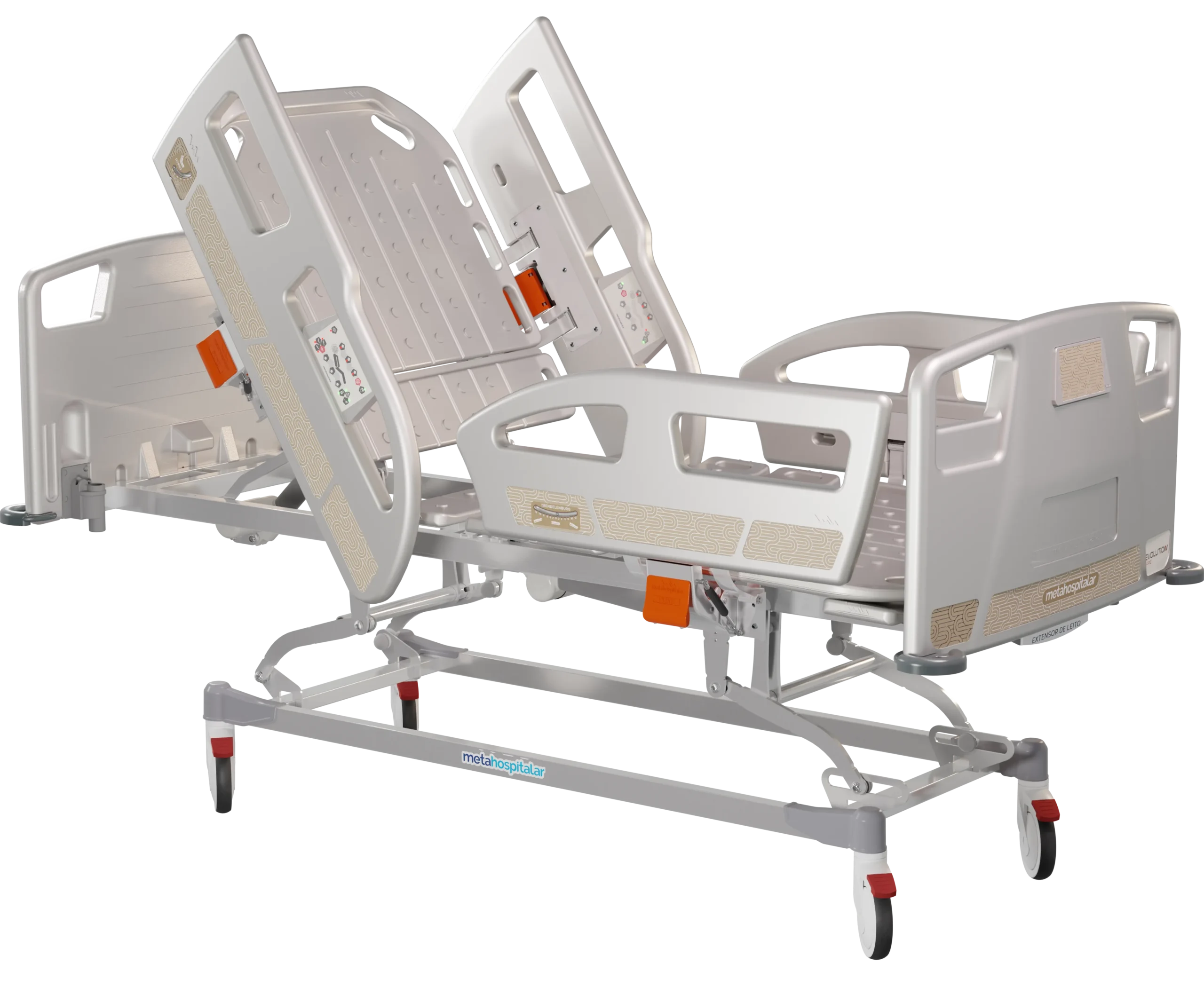

MT 161 – Evolution Care

ANVISA Registration: 80581990009
Certified Product:

Illustrative image only. Subject to variations. Optional accessories available.

Structure

Frame: High-strength tubular carbon steel construction
Chassis: 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 6.35 mm thick plates (1/4″).
Metal Structure Surface Finish: anti-rust chemical treatment and electrostatic powder coating finish. 1,500-hour salt spray test performed by an INMETRO-accredited laboratory.

Bed

Bed Platform: composed of a 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 9.5 mm thick plates (3/8″). The metal structure of the bed platform consists of four articulated sections made with a 30 x 20 x 1.2 mm tubular structure (≈1″ x 1″ x 0.05″) with 4.8 mm thick plates (3/16″).
Bed Platform: articulated thermoplastic platform in 4 sections.

Siderails

Full-length retractable siderails, equipped with a safety locking system and integrated angle indicators (backrest and Trendelenburg).

Headboard and footboard

Removable, high-strength polyethylene construction

Movement and Elevation

Backrest Fowler: 77º
Leg Fowler: 23º
Trendelenburg: 15º
Reverse Trendelenburg: -15º

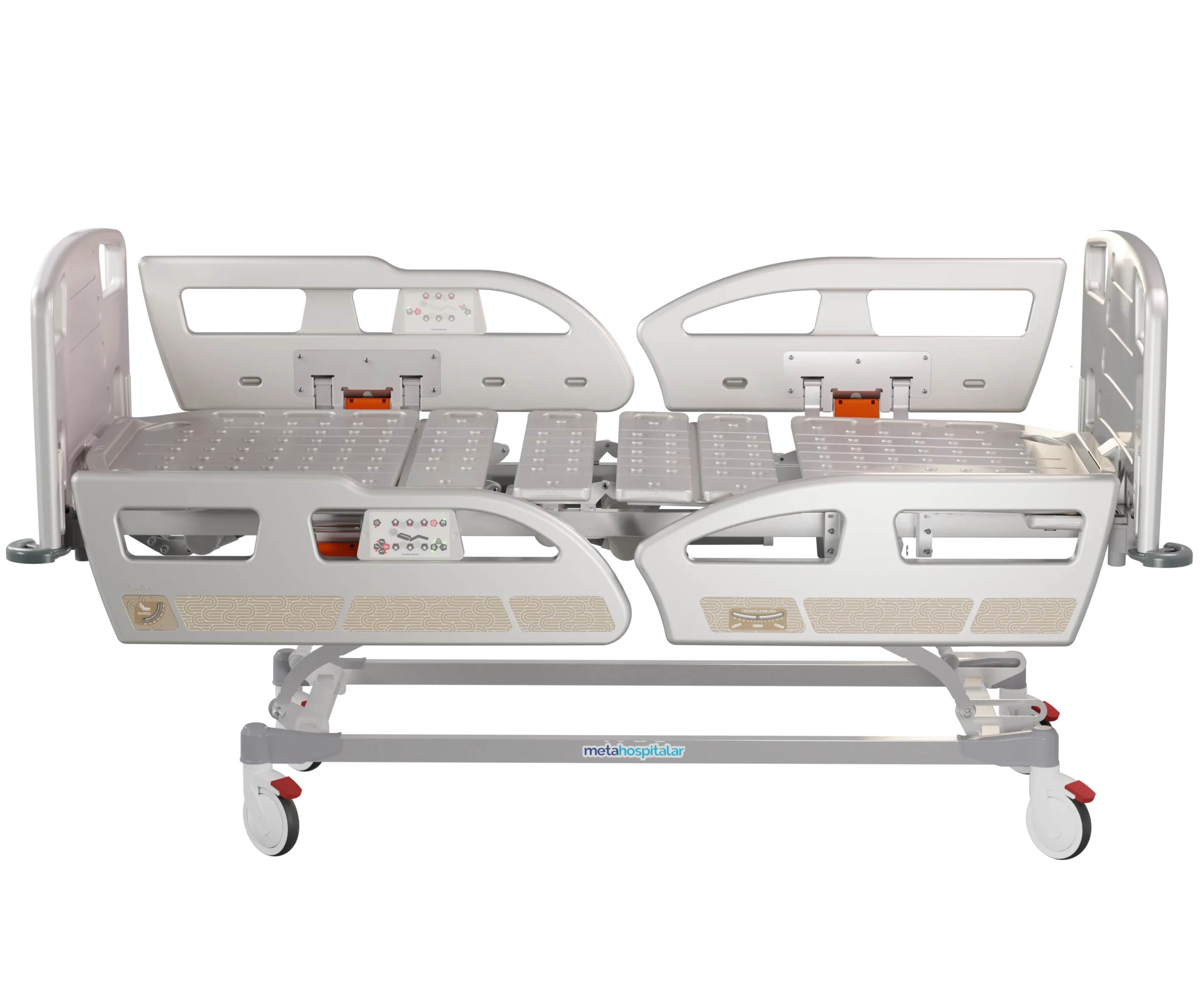

Maximum Height: 68 cm (≈27″)

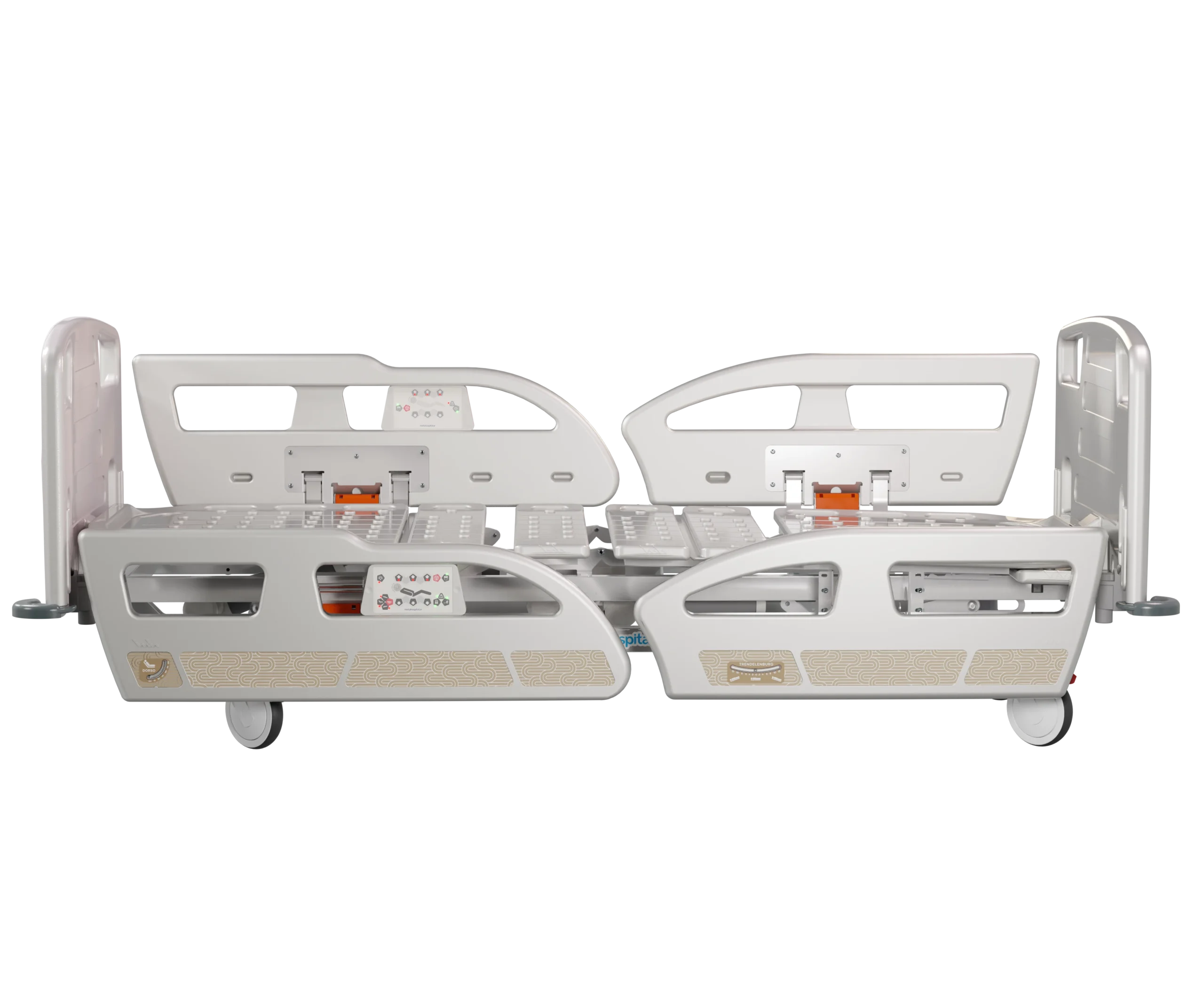

Minimum Height: 33 cm (≈13″)

4-motor lifting system providing smooth, quiet, and safe operation.
Operation: Controlled through the siderail controls (inside and outside), with function lockout.
Electric Movements: Fowler, Semi-Fowler, Trendelenburg, Reverse Trendelenburg, Chair Position, Vascular Position, Cardiac Position, Abdominal Compensation System, and Auto-Contour.

Dimensions

Bed Platform: 195 x 83 cm (≈77″ x 33″)

Standard Accessories

Foley Bag Holder
Bed Platform Extension: 20 cm (≈8″)
Mattress Retainer Supports
Base: Thermoplastic protective cover
Bumper
Casters: 5″ casters with individual locking brakes.

Mattress Included

Mattress Registration: 80581990013
Model: MT-672
D-28 foam, waterproof hospital-grade synthetic leather upholstery, seamless welded finish, and compatible with the bed dimensions

Load Capacity

280kg (617lbs)

Accessories
