MT 168 – Evolution Care ICU

ANVISA Registration: 80581990009
Certified Product:

Illustrative image only. Subject to variations. Optional accessories available.

Adicionar às cotações

Structure

Frame: High-strength tubular carbon steel construction
Chassis: 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 6.35 mm thick plates (1/4″).
Metal Structure Surface Finish: anti-rust chemical treatment and electrostatic powder coating finish. 1,500-hour salt spray test performed by an INMETRO-accredited laboratory.

Bed

Bed Platform: composed of a 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 9.5 mm thick plates (3/8″). The metal structure of the bed platform consists of four articulated sections made with a 30 x 20 x 1.2 mm tubular structure (≈1″ x 1″ x 0.05″) with 4.8 mm thick plates (3/16″).

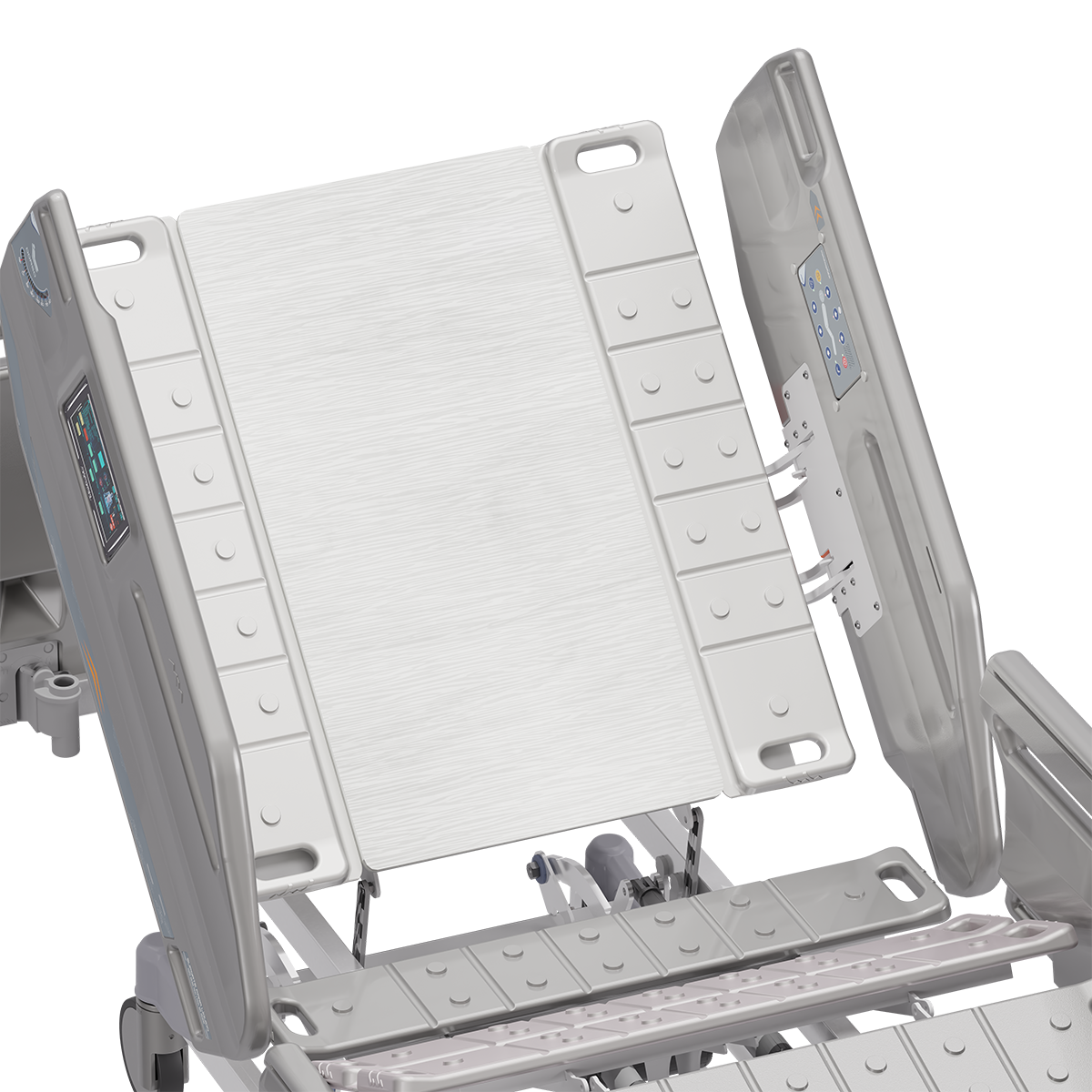

Bed Platform: articulated thermoplastic platform in 4 sections, with radiolucent backrest and X-ray cassette tray.

Siderails

Full-length retractable siderails, equipped with a safety locking system and integrated angle indicators (backrest and Trendelenburg).

Headboard and footboard

Removable, high-strength polyethylene construction

Movement and Elevation

Backrest Fowler: 77°
Leg Fowler: 23°
Trendelenburg: 15°
Reverse Trendelenburg: -15°
Maximum Height: 75 cm (≈30″)
Minimum Height: 40 cm (≈16″)

4-motor lifting system providing smooth, quiet, and safe operation.
Operation: Controlled through the siderail controls (inside and outside) and satellite supervisor with function lockout.
Electric Movements: Fowler, Semi-Fowler, Trendelenburg, Reverse Trendelenburg, Chair Position, Vascular Position, Cardiac Position, Abdominal Compensation System, Auto-Contour, Electric CPR, and One-Touch CPR with immediate return to the horizontal position.
Mechanical CPR function. Bed Exit Alarm System

Scale

Satellite Supervisor: Digital Scale: Integrated weighing system providing accurate weight readings without the need to remove the patient from the bed.

Battery

Rechargeable backup battery for operation during power outages.

Dimensions

Bed Platform: 195 x 83 cm (≈77″ x 33″)

Standard Accessories

Night Light and Illuminated Controls
Foley Bag Holder
Bed Platform Extension: 20 cm (≈8″)
Mattress Retainer Supports
Base: Thermoplastic protective cover
Bumper
Ruedas de 6” con sistema de freno central total y direccional.
01 IV Pole with Height Adjustment

Mattress Included

Mattress Registration: 80581990013
Model: MT-666
D-28 foam + D-40 viscoelastic foam, waterproof seamless cover, compatible with the bed dimensions

Load Capacity

280kg (617lbs)

Accessories
