Capacity: 230kg (≈507 lb)

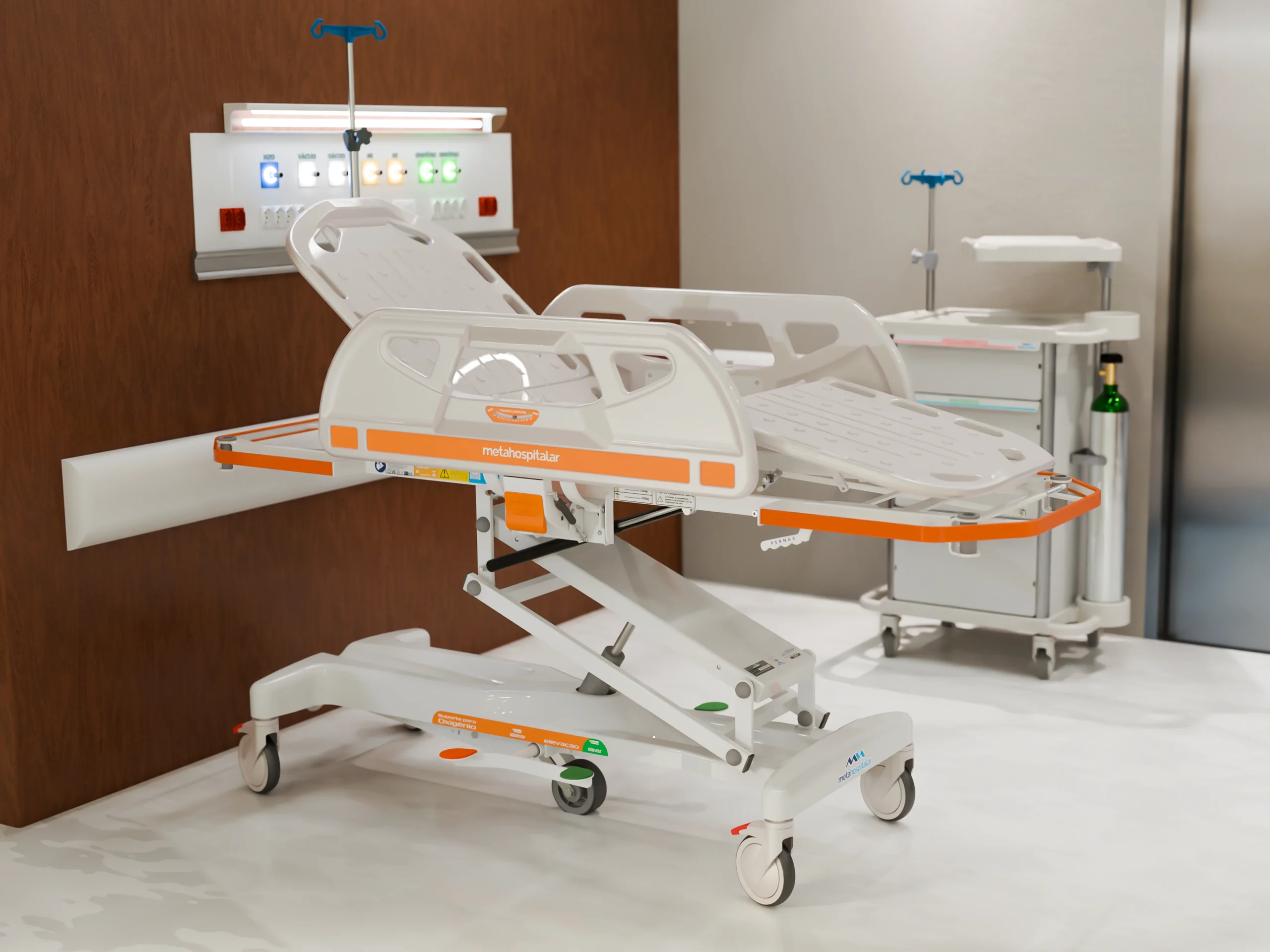

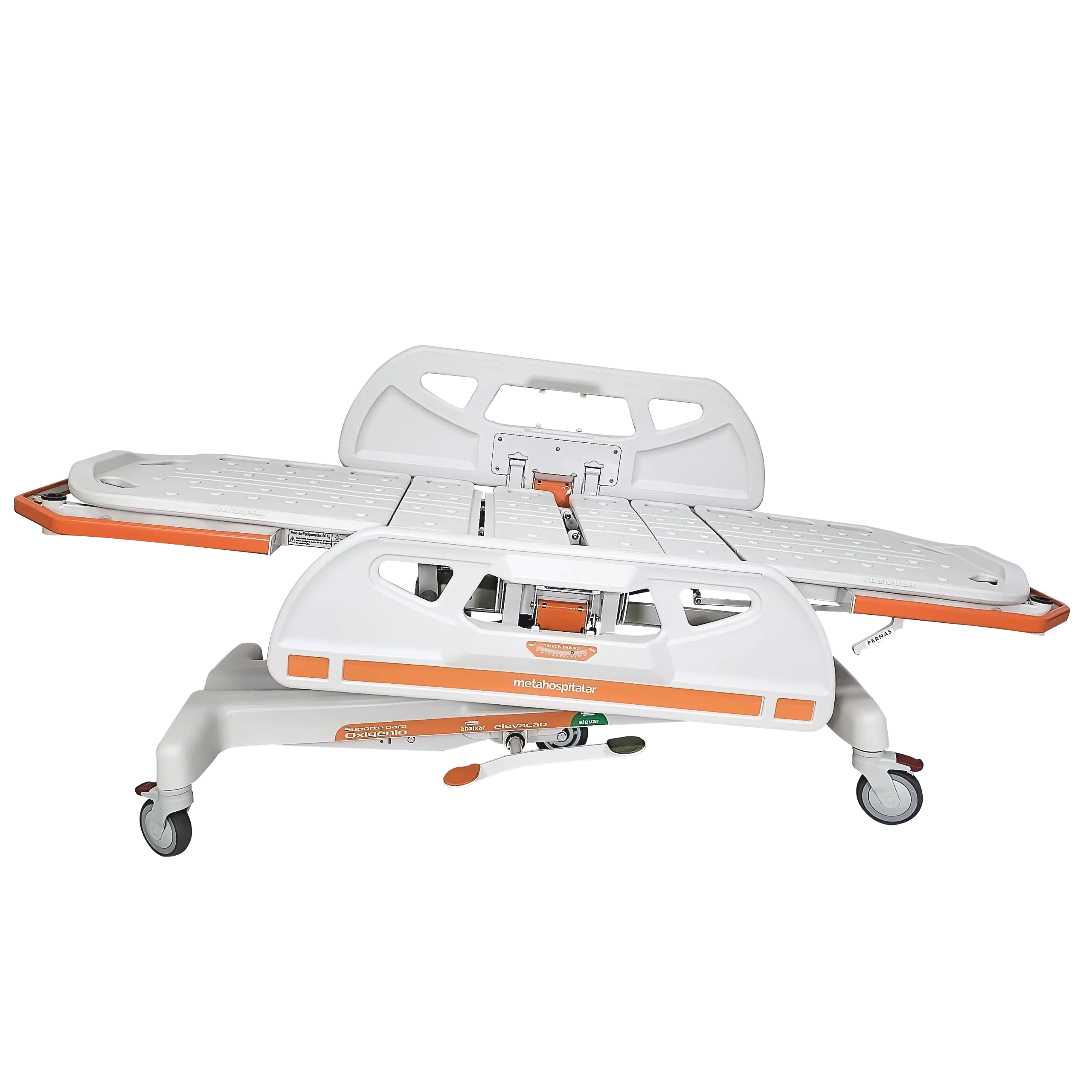

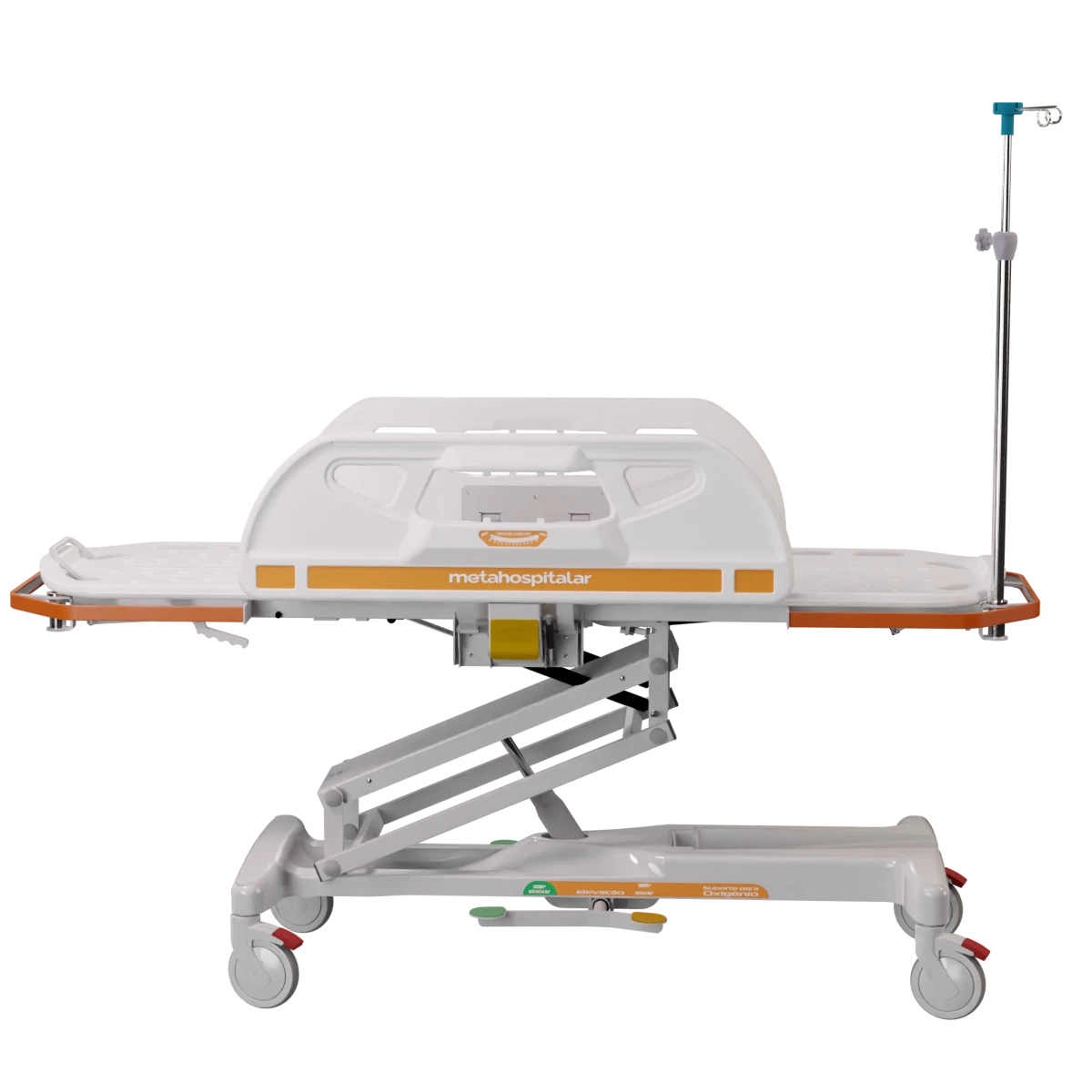

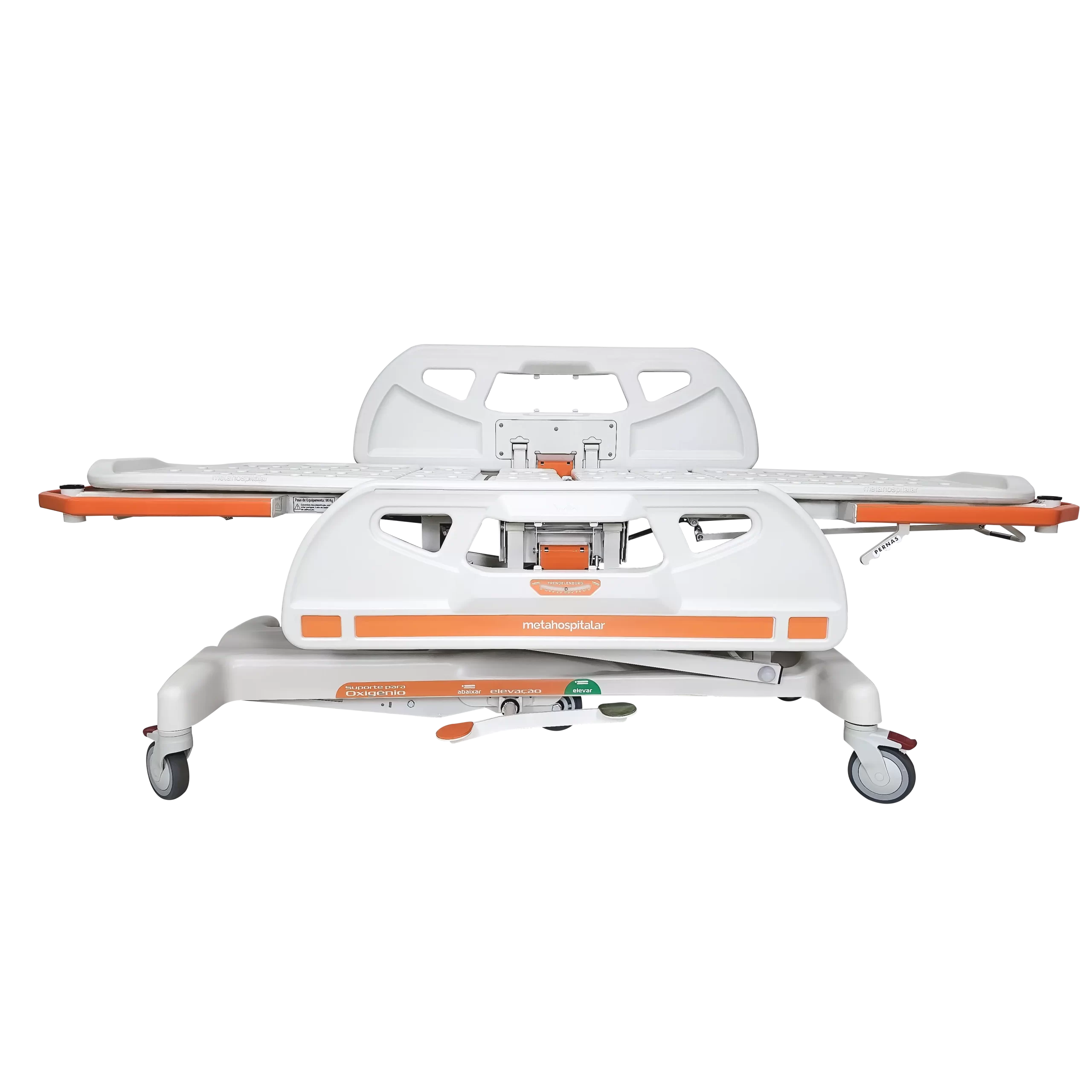

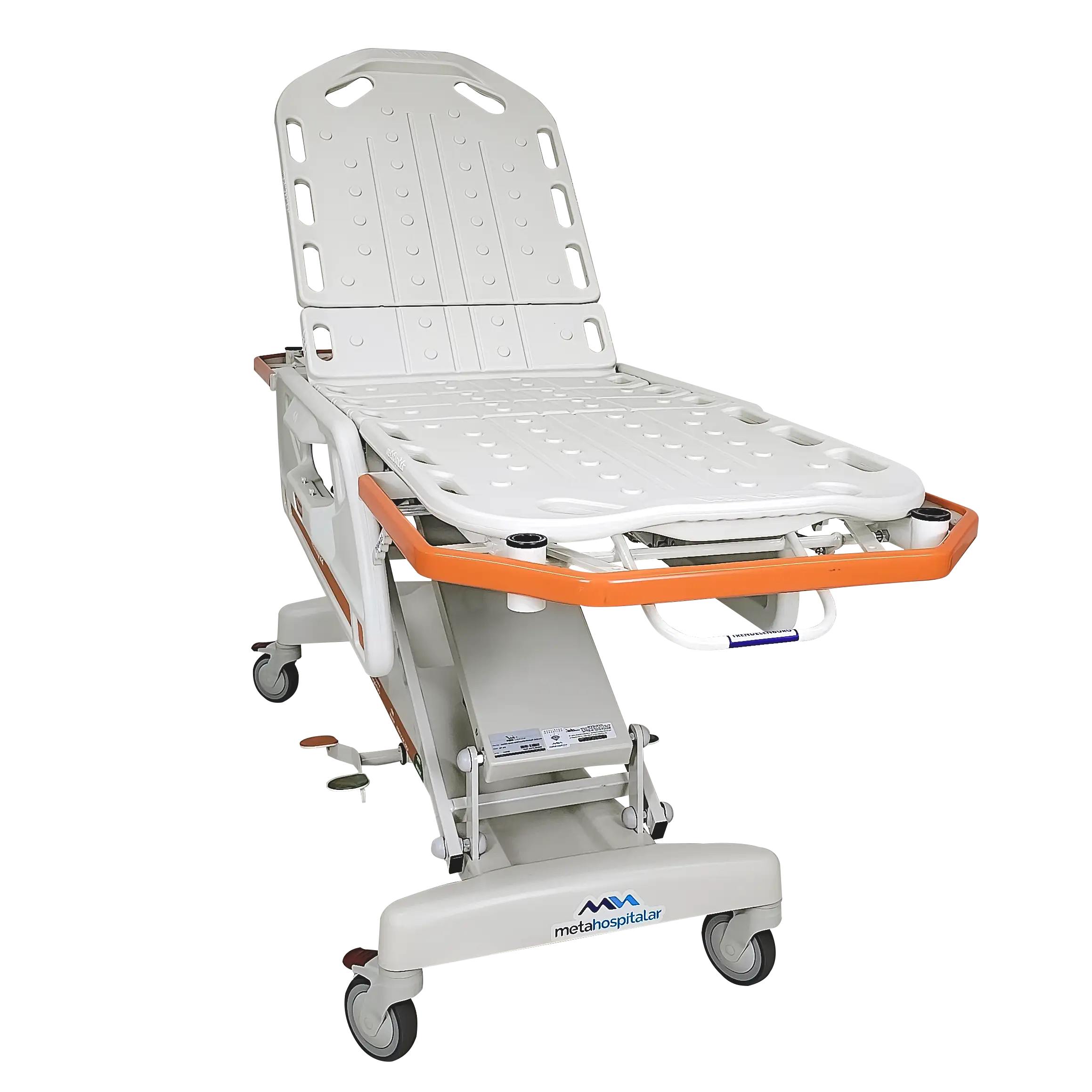

MT 413 – Stretcher 600mm

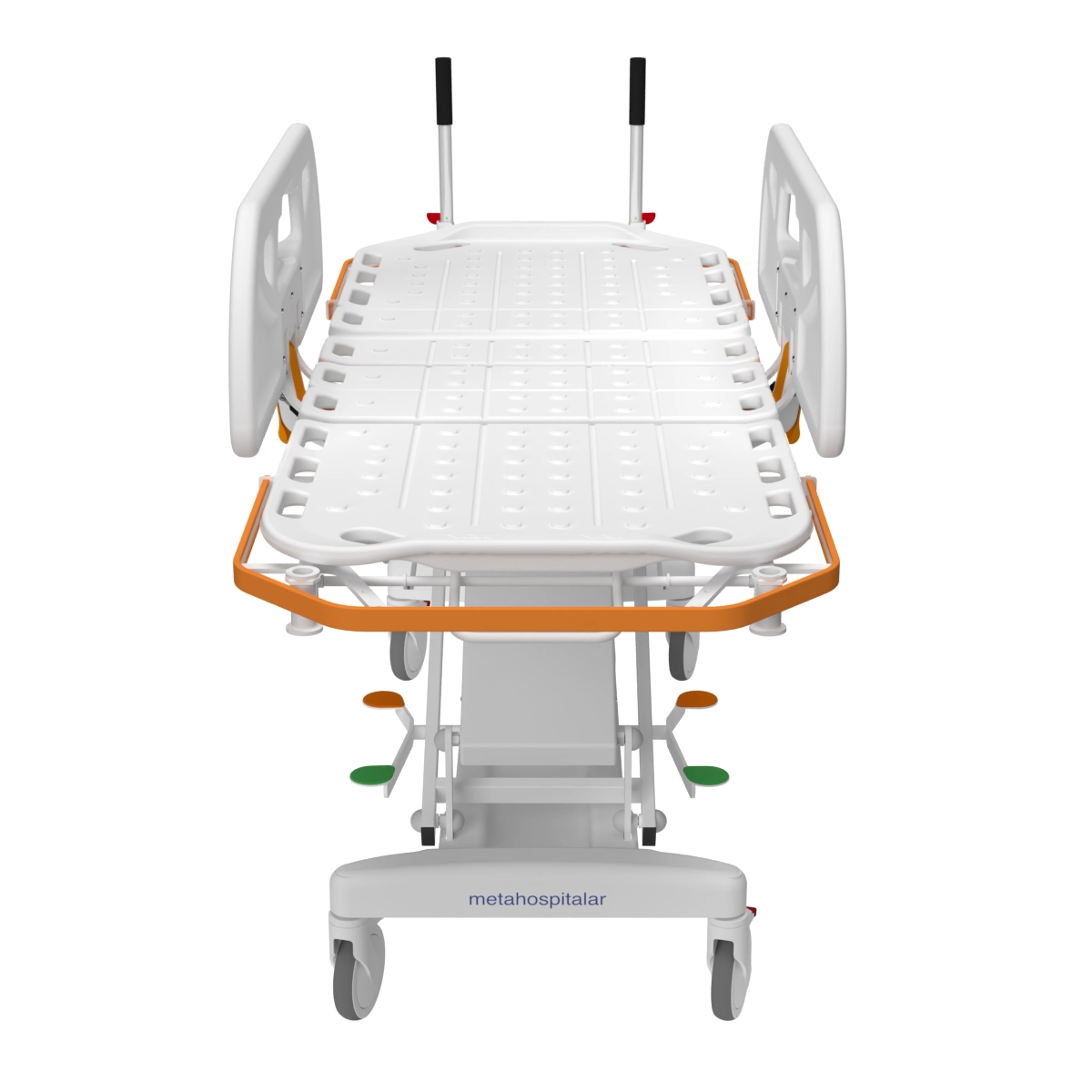

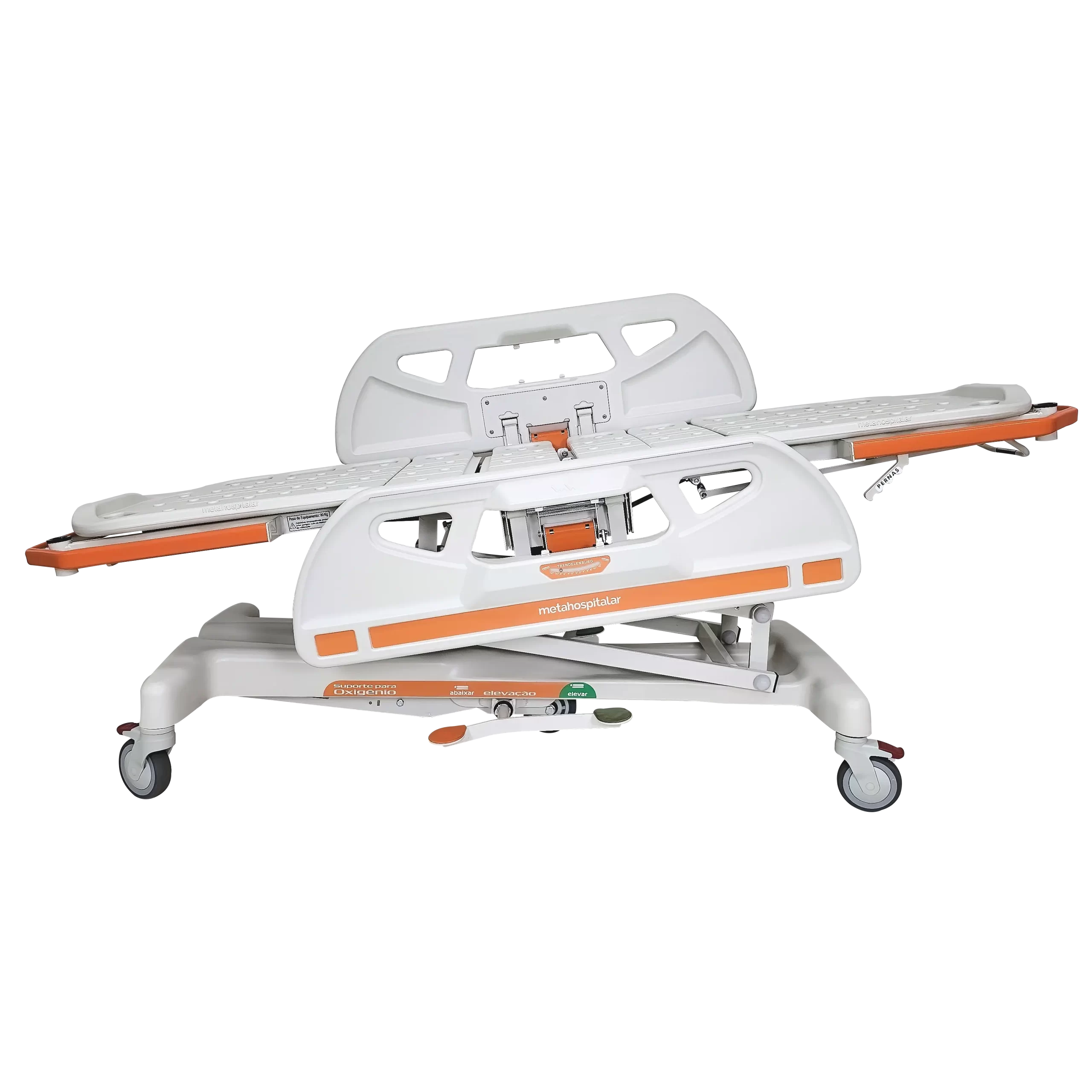

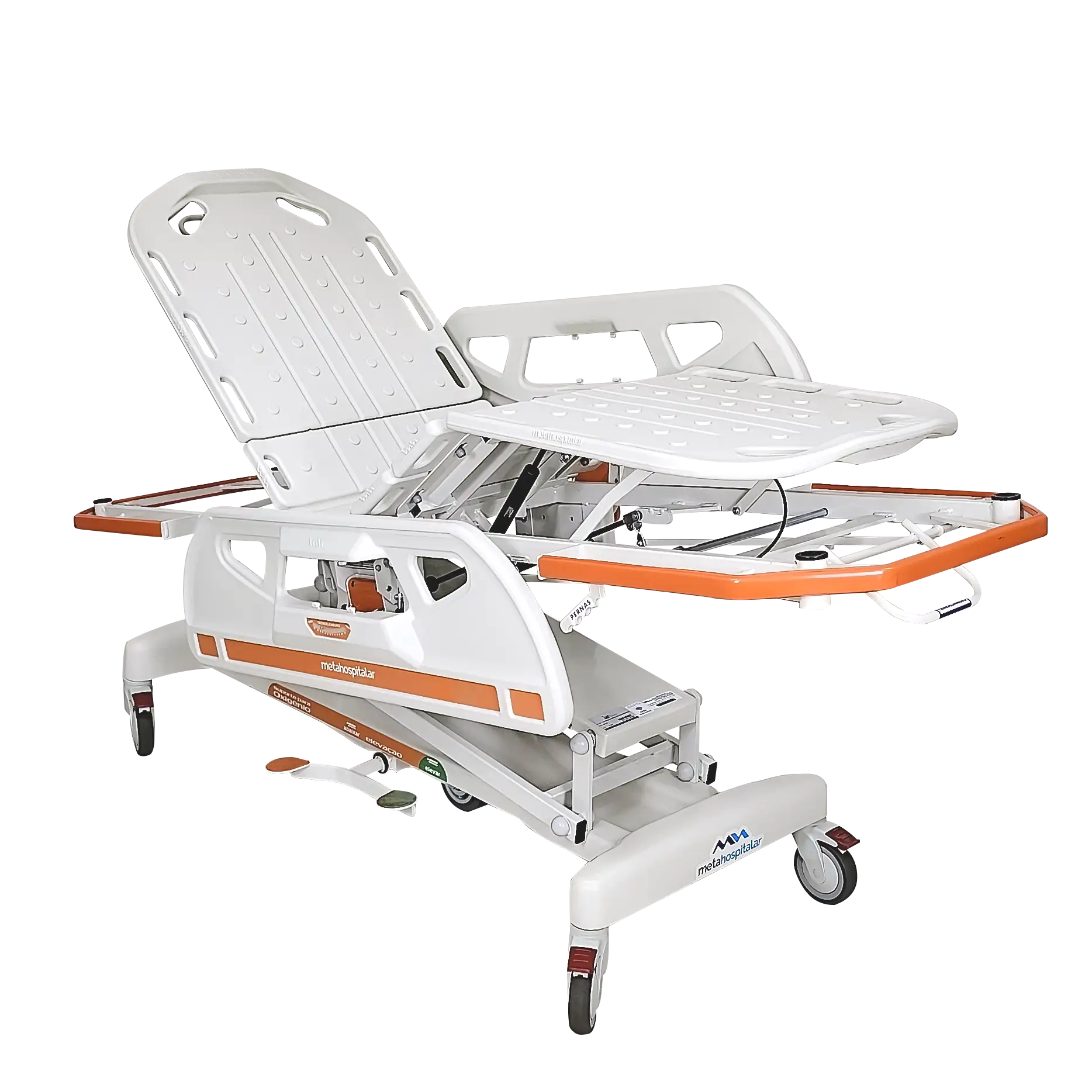

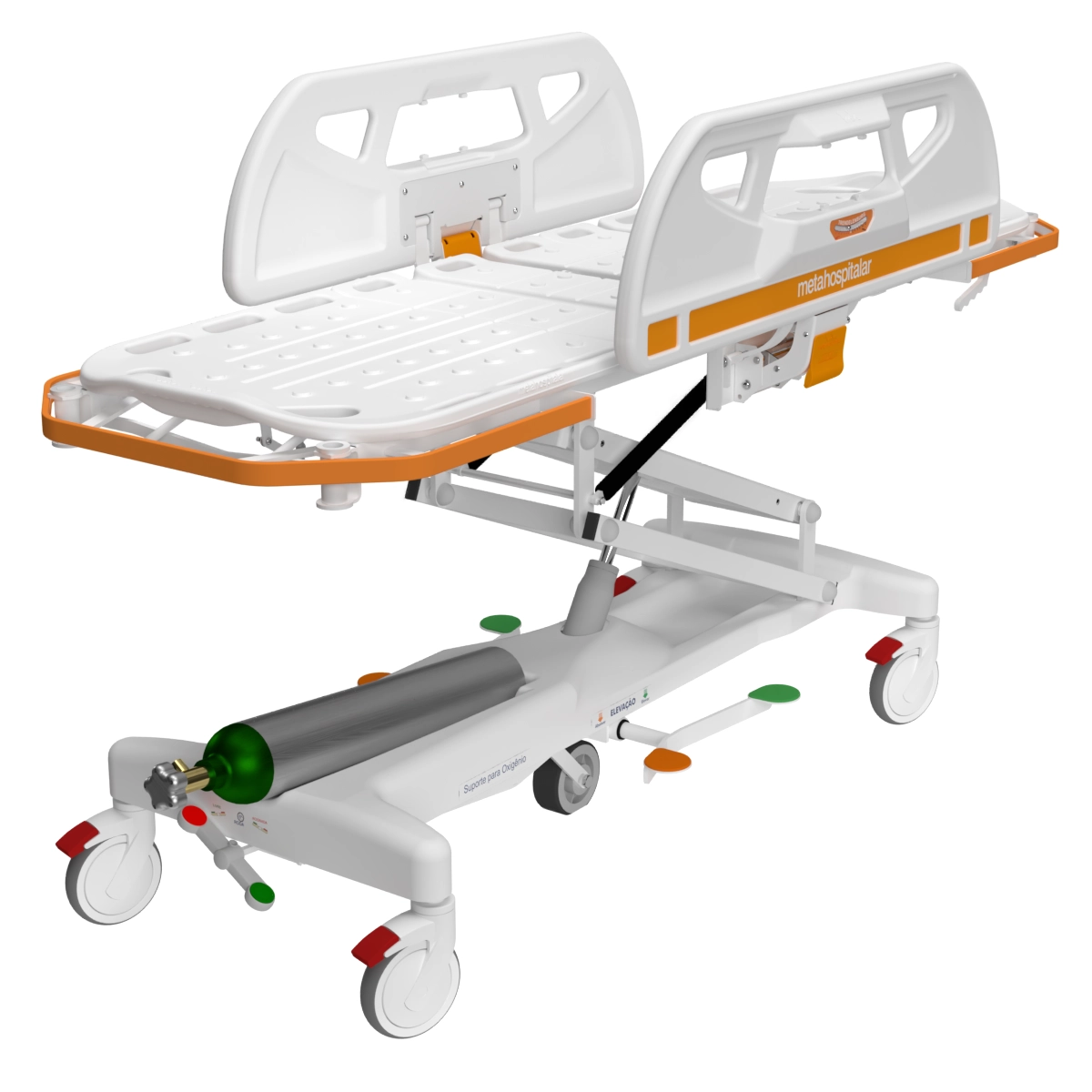

Image for illustrative purposes only. Features may vary. Optional accessories available.
Structure
Structure: Tubular frame with carbon steel plates.
Chassis: 60 x 40 x 2.0 mm tubular structure (≈2″ x 2″ x 0.08″) with 6.35 mm thick plates (1/4″).
Metal Structure Surface Finish: anti-rust chemical treatment and electrostatic powder coating finish. 1,500-hour salt spray test performed by an INMETRO-accredited laboratory.
Bed
Bed Frame: composed of a 40 x 20 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 6.35 mm thick plates (1/4″). The metal structure of the bed platform consists of four articulated sections made with a 30 x 20 x 1.2 mm tubular structure (≈1″ x 1″ x 0.05″) with 4.8 mm thick plates (3/16″).

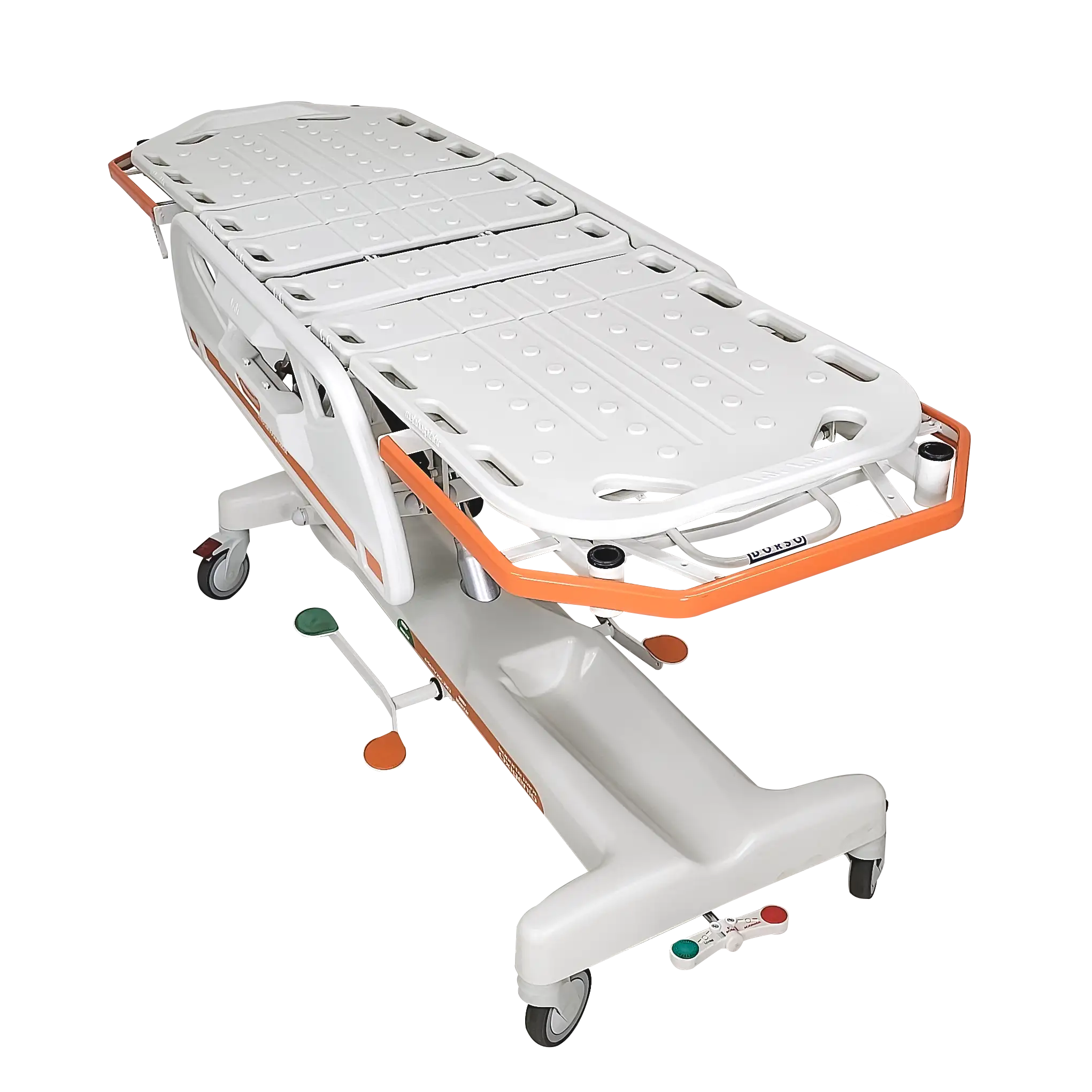

Bed Platform: articulated thermoplastic platform in 4 sections.
Siderails
Grades laterais retráteis. Com trava de segurança. Indicador de Ângulo Trendelenburg
Movement and Elevation

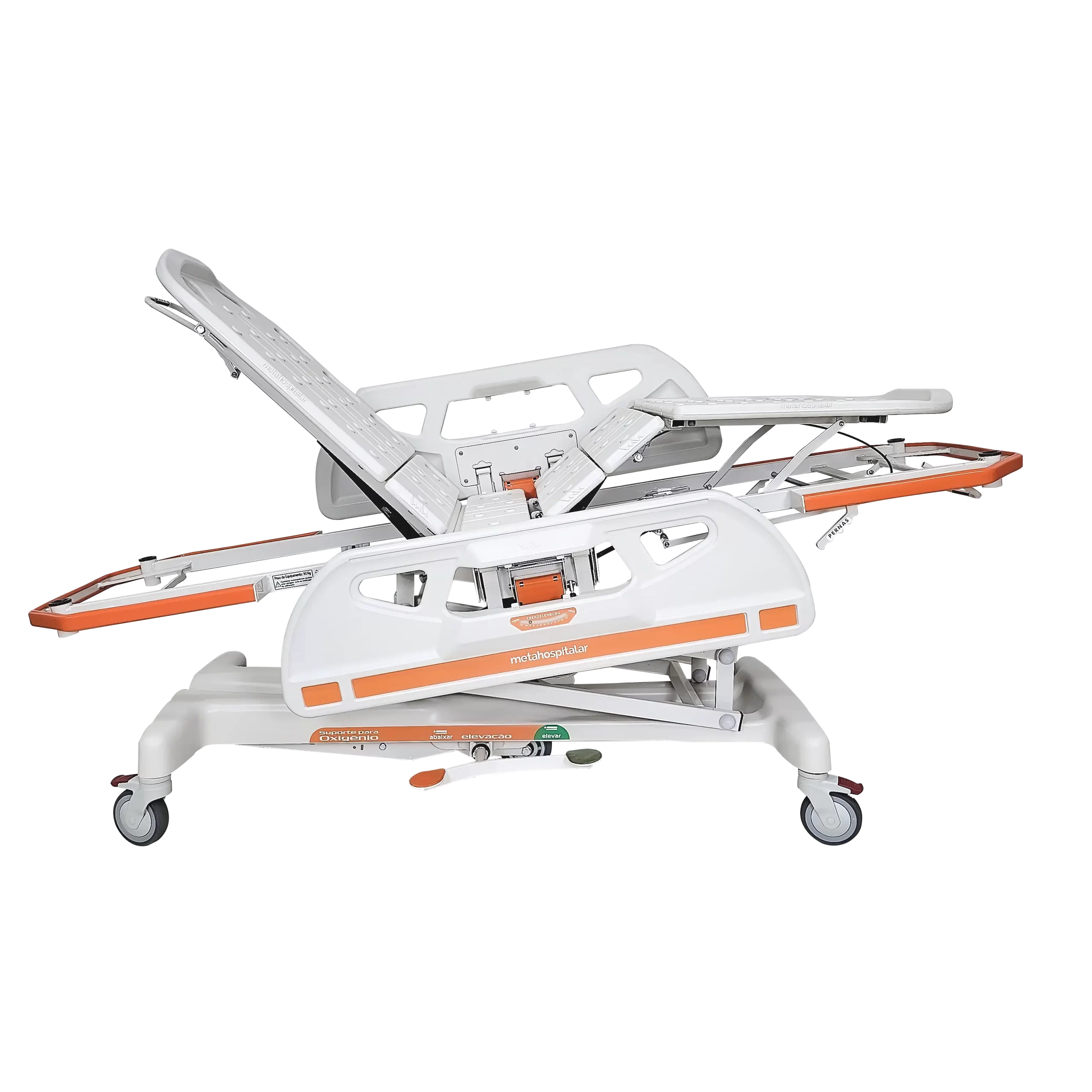

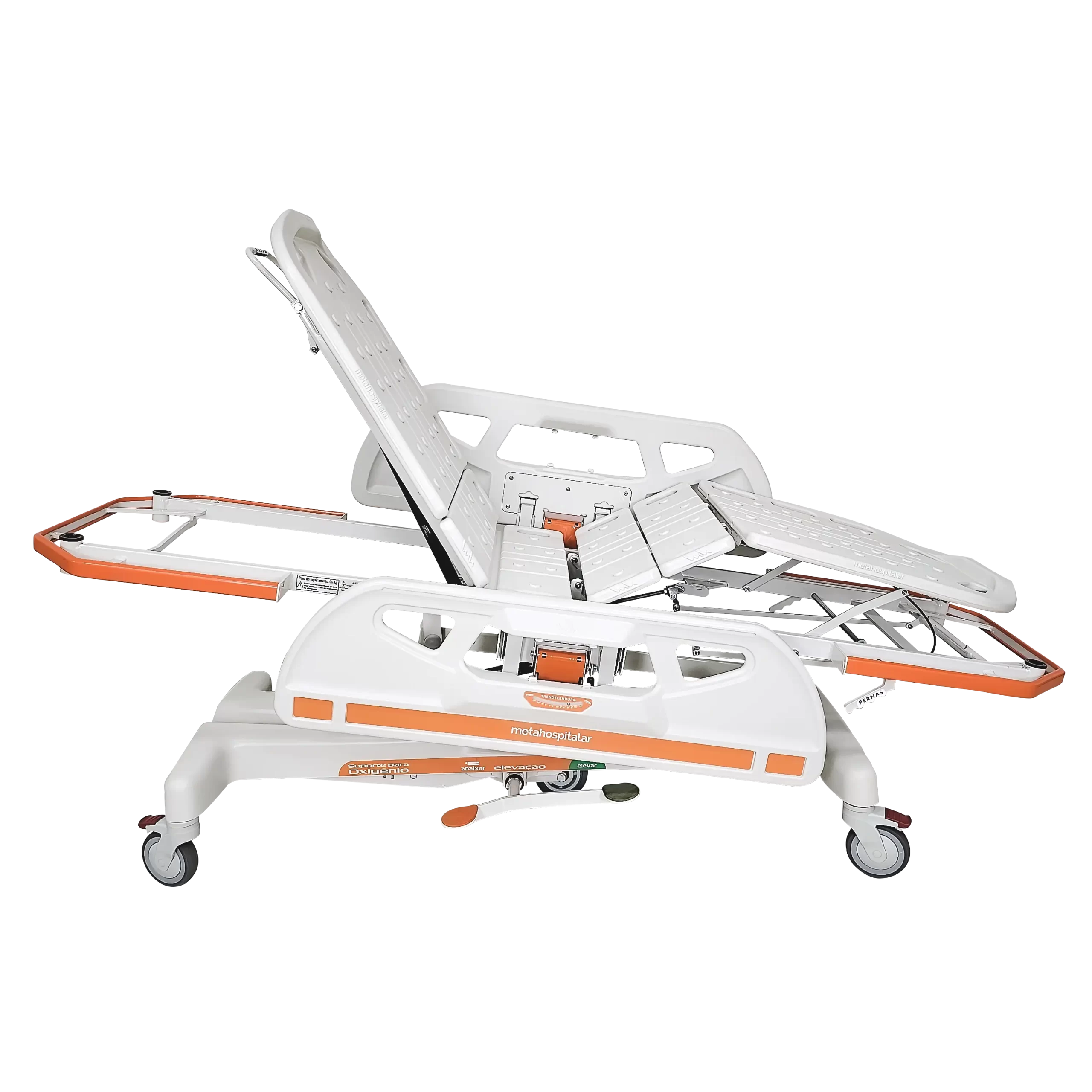

Backrest Fowler: 80º +25%
Leg Fowler: 25 ± 25%
Trendelenburg: 12°± 25%
Reverse Trendelenburg: (-12° ± 25%)
Maximum Height: 96 cm (≈38″)
Minimum Height: 67 cm (≈26″)
Height adjustment system with gas springs and hydraulic actuator, providing smooth, silent, and safe movement.
Activation: through pedals and manual levers.
Movements: Fowler, Semi-Fowler, Trendelenburg, Reverse Trendelenburg, Chair Position, Vascular Position, and Cardiac Position.
Dimensions
Dimensions:
Bed Platform: 187 x 60cm (≈74″ x 24″)
Standard Accessories
- Foley Bag Holder
- Mattress Retainer Supports
- Bumper
- 127 mm caster (5″) with individual brake.
- 01 IV Pole with Height Adjustment
- Oxygen Cylinder Support
- 5ª wheel
Colchão Incluso
Mattress Pad: Registro: 80581990013
Model: MT-658
D-28 foam, waterproof seamless cover, compatible with the stretcher dimensions
