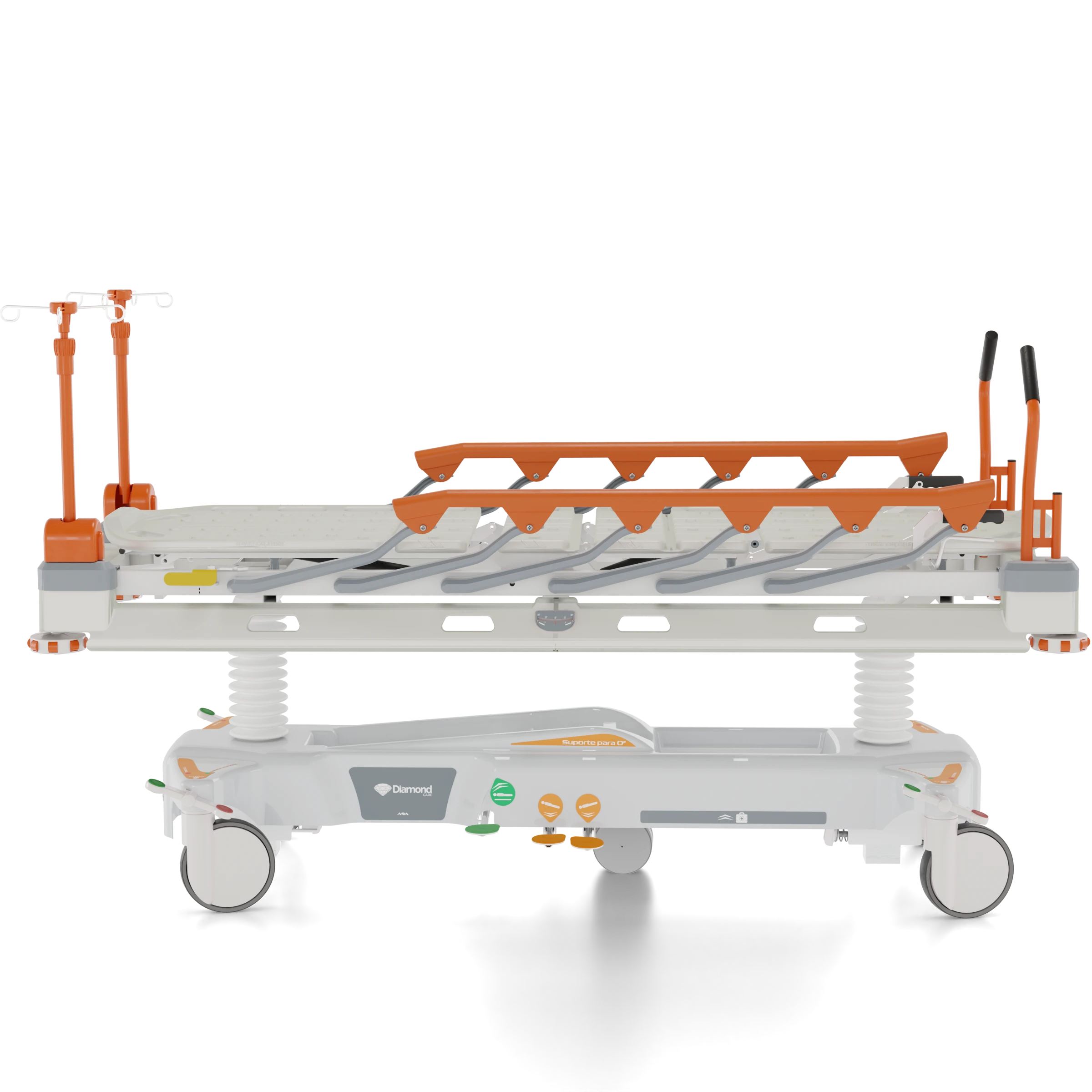

MT 416 – Diamond Stretcher

ANVISA: 80581990007
Certified Product:

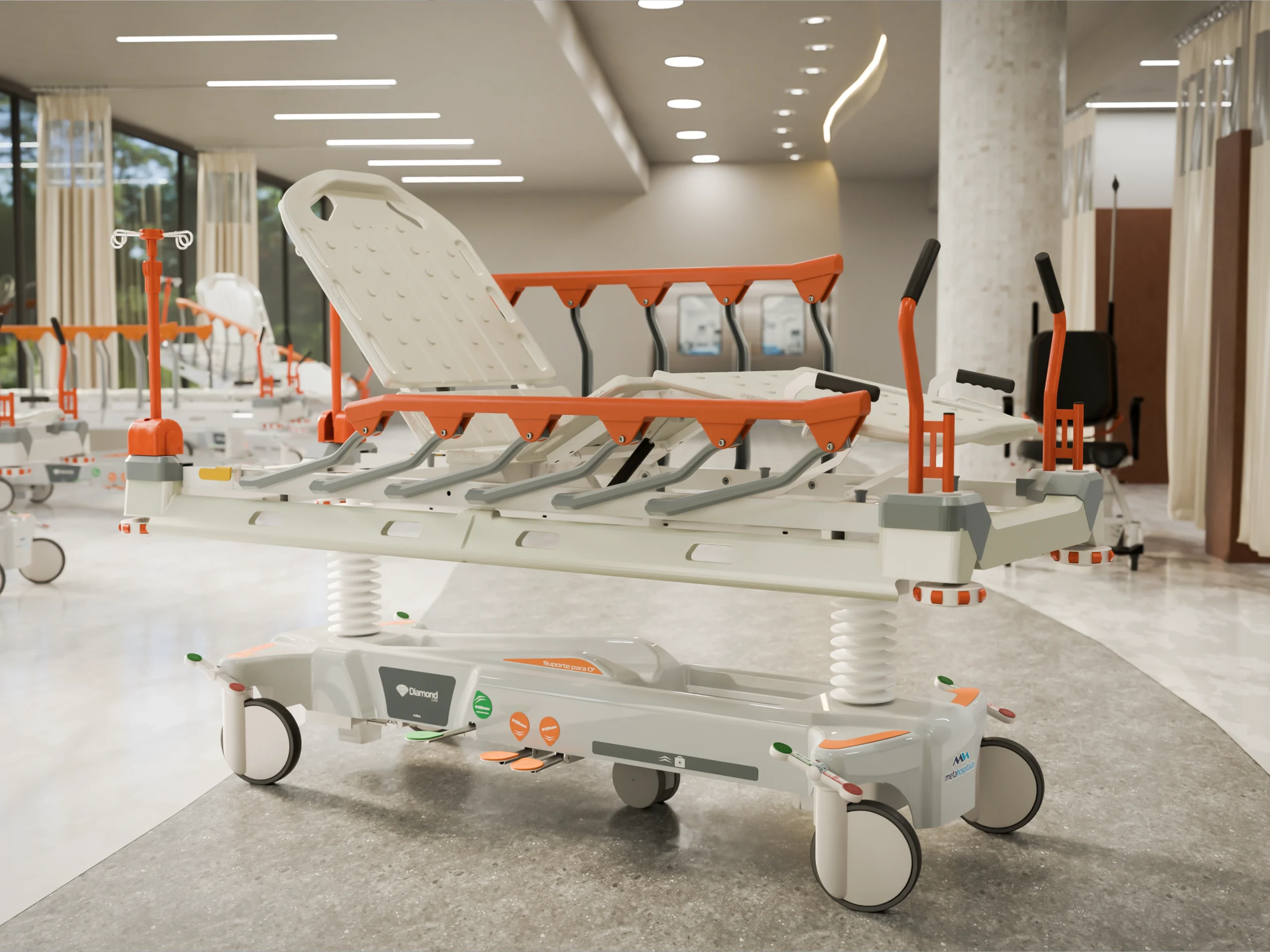

Image for illustrative purposes only. Features may vary. Optional accessories available.

Adicionar às cotações

Structure

Structure: Tubular frame with carbon steel plates.
Chassis: 60 x 40 x 2.0 mm tubular structure (≈2″ x 2″ x 0.08″) with 6.35 mm thick plates (1/4″).
Metal Structure Surface Finish: anti-rust chemical treatment and electrostatic powder coating finish. 1,500-hour salt spray test performed by an INMETRO-accredited laboratory.

Bed

Bed Platform: composed of a 50 x 30 x 2.0 mm tubular structure (≈2″ x 1″ x 0.08″) with 9.5 mm thick plates (3/8″). The metal structure of the bed platform consists of four articulated sections made with a 30 x 20 x 1.2 mm tubular structure (≈1″ x 1″ x 0.05″) with 4.8 mm thick plates (3/16″).
Bed Platform: articulated thermoplastic platform in 4 sections.

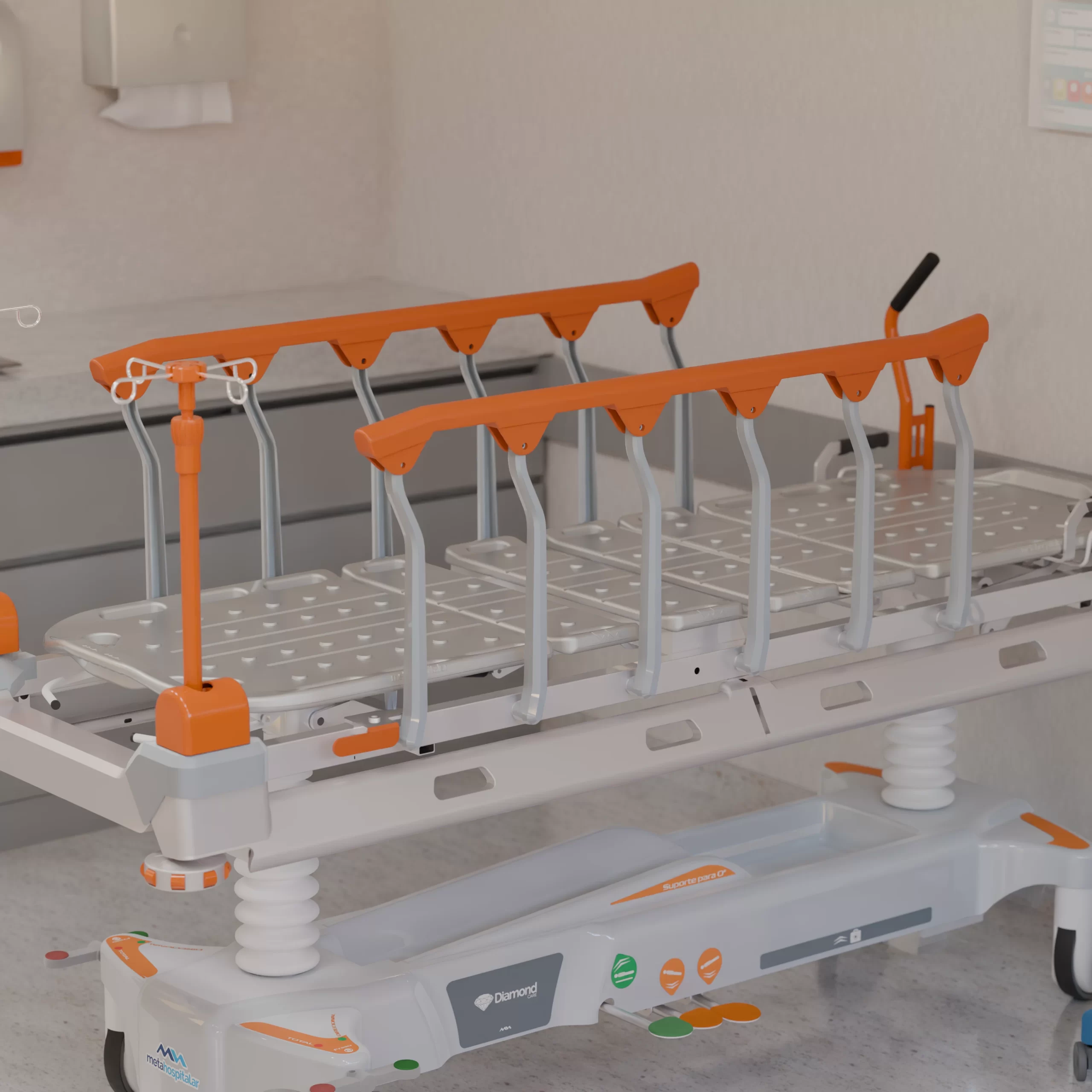

Siderails

Grades laterais retráteis. Com trava de segurança. Indicador de Ângulo Trendelenburg

Movement and Elevation

Backrest Fowler: 80º +25%
Leg Fowler: 25 ± 25%

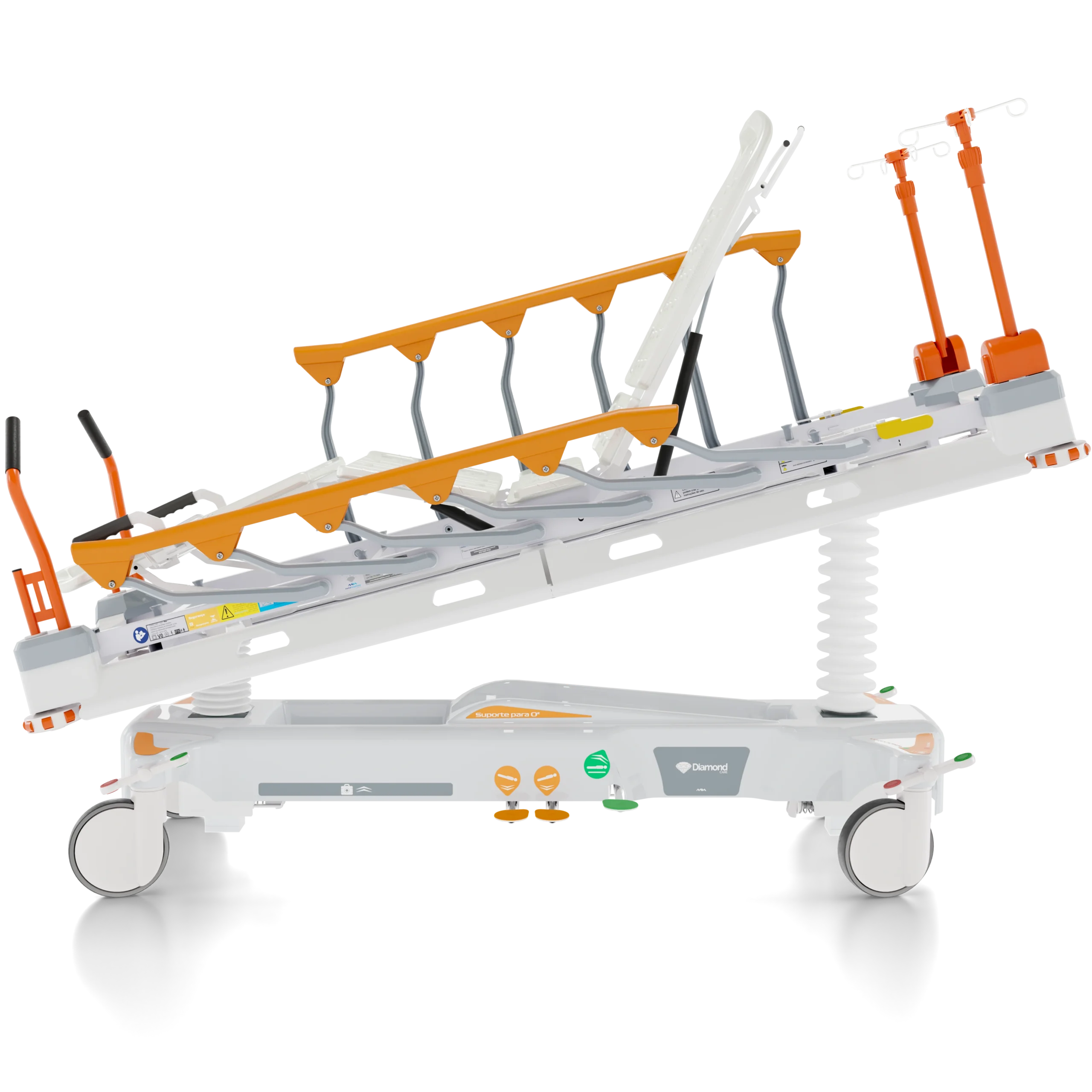

Trendelenburg: 12°± 25%
Reverse Trendelenburg: (-12° ± 25%)
Maximum Height: 92 cm (≈36″)
Minimum Height: 60 cm (≈24″)

Height adjustment system with gas springs and hydraulic actuator, providing smooth, silent, and safe movement.

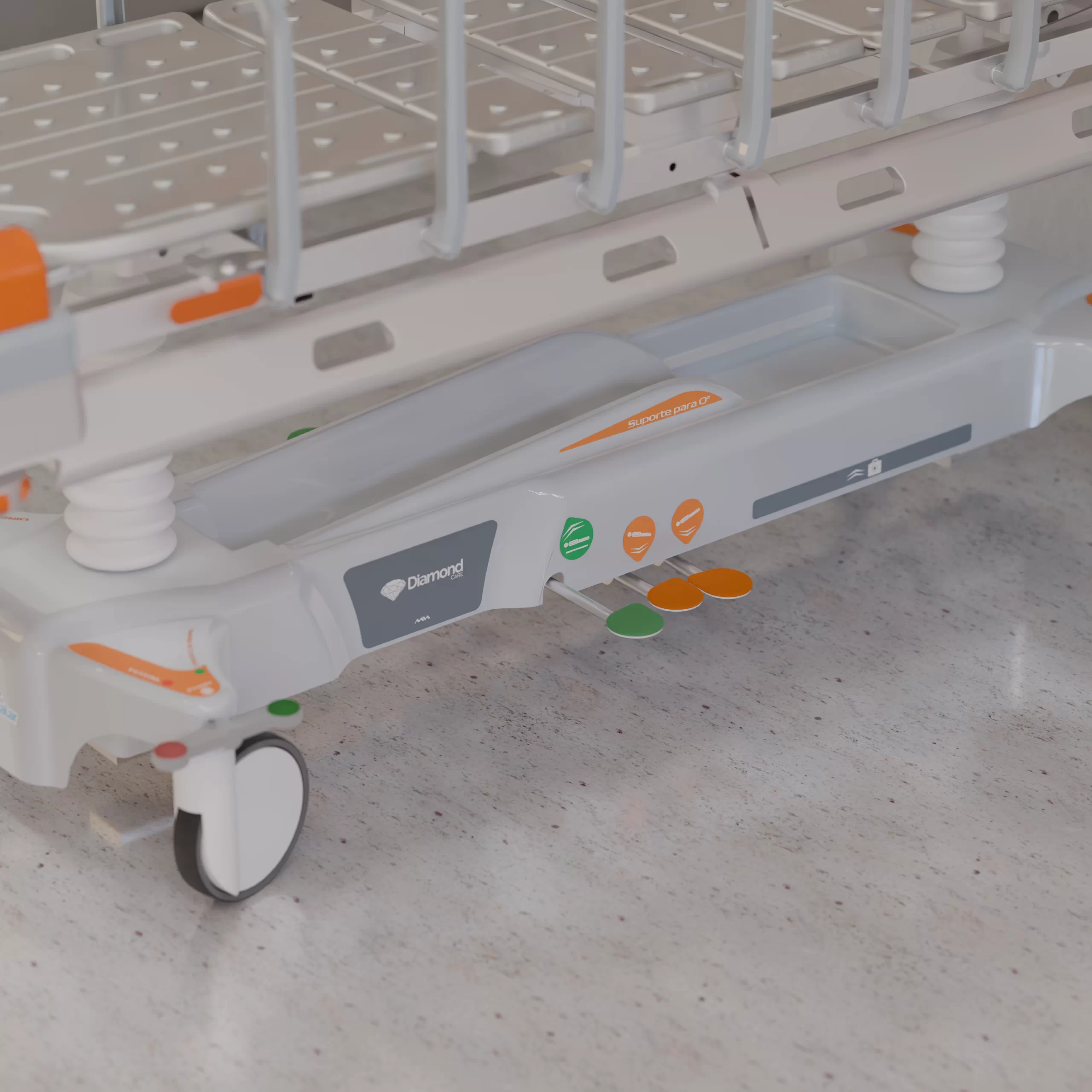

Activation: through pedals and manual levers.
Movements: Fowler, Semi-Fowler, Trendelenburg, Reverse Trendelenburg, Chair Position, Vascular Position, and Cardiac Position.

Dimensions

Dimensions:
Bed Platform: 195 x 60cm (≈77″ x 24″)

Standard Accessories
